Das Kunststoff-Laserschutzfenster P1P10 (3mm, OD 8+) besitzt sehr hohe Schutzstufen im Bereich 1030-1400nm (D LB6 + IRM LB8) und zusätzlichen Justierschutz bei 635-690nm (RB1). Das Laserschutzfenster hat eine sehr gute Farbsicht und 16% VLT. Es ist eine Alternative zu den herkömmlichen grünen Laserschutzfenstern. Das blaue Laserschutzfenster ist kundenspezifisch bis zu einer Größe von 3000x2000mm erhältlich. Das Fenster ist CE zertifiziert für 5 und 10 Sekunden Beschussdauer.
  • Order number: 000P1P102008
  • GTIN: 4050369030732
  • Pack unit: 1 pieces
  • Weight incl. packaging: 7,20 kg
  • Weight excl. packaging: 7,20 kg
  • Content: 1
available standard sizes (mm)
Question
Remember Saved
Print PDF
Product number: 000P1P102008
Product information "laser safety window P1P10 (3mm)"

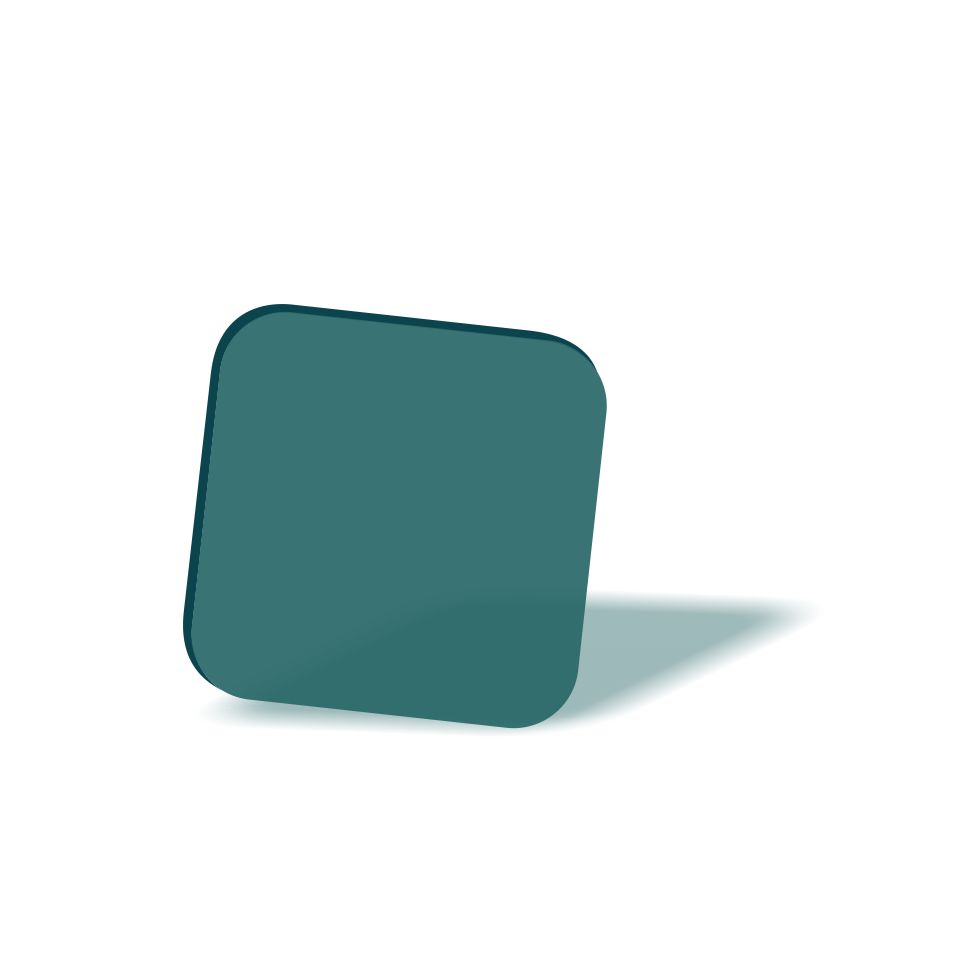

The laser safety window P1P10 is a new blue absorbing laser protection filter without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser protection window has a daylight transmission of approx. 16%, is CE certified and available in different dimensions and with 3 or 6mm thickness. A broadband laser protection exists from 635nm to 11,500nm. It is especially suitable against disc- and fiber lasers with an OD8+ at 1,030-1,400nm (D LB6 + IRM LB8) and against 960nm laser diodes and Nd:YAG lasers. It also exists an additional alignment protection between 635 and 690nm. Please calculate required protection levels before using the laser safety window and compare with the filter provided.

Specifications

Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
Coating: Anti-scratch on both sides
Colour: blue
Filter material: Plastic
Filter technology: Absorption filter
Filter thickness: ca. 3mm
Protection Class / Norm: EN 207 full protection, EN 208 Alignment protection, EN 60825
Protection range: Infrared, near infrared, ultraviolett, visible
VLT (approx.): 16%
Visual brightness: Sufficient
colour recognition: Good
840-3000nm | 40,7 kW/m2 | T3 | tmax = 63s
840-3000nm | 18,1 kW/m2 | T2 | tmax = 105s
5200-14700nm | 50,9 kW/m2 | T2 | tmax = 105s

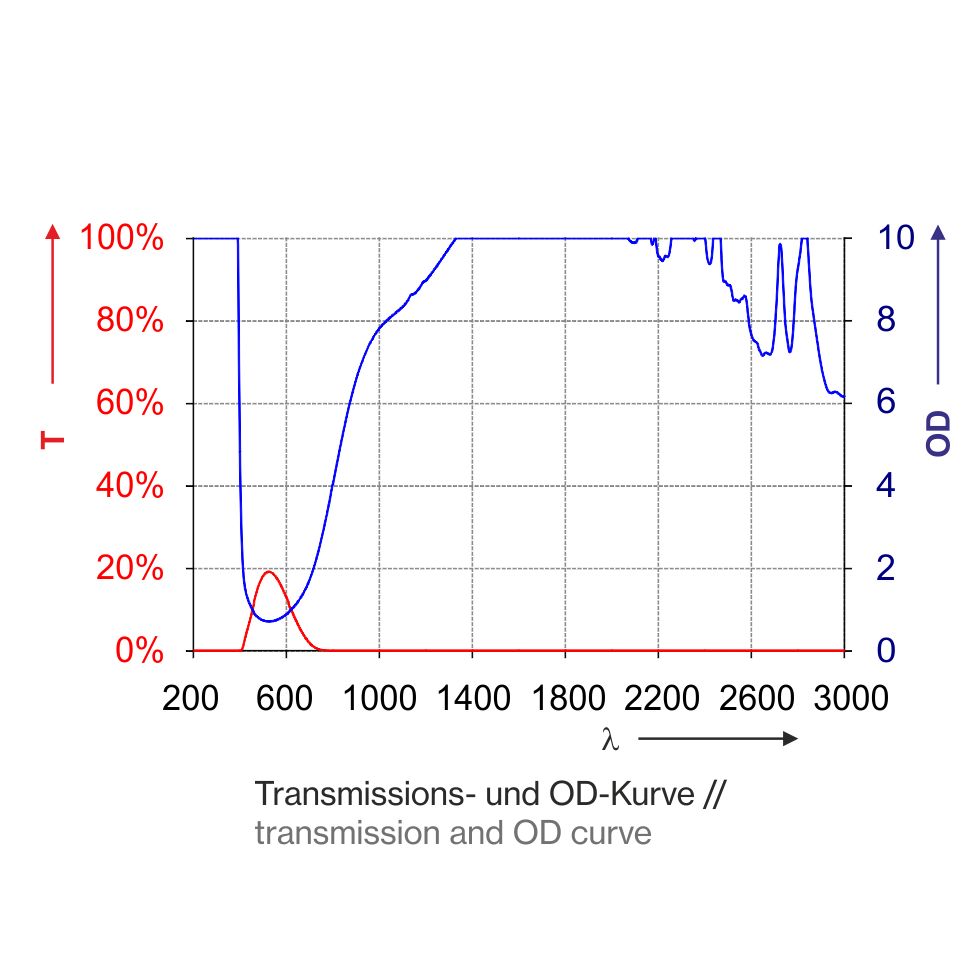

WAVELENGTH (NM) OD OPERATING MODE / TESTED PROTECTION LEVEL
180 - 315 (OD10+) D LB10 + IR LB4 + M LB6
>315 - 385 (OD8+) D LB6 + IRM LB8
>385 - 400 (OD4+) DIRM LB4
635 - 690 (OD1-2+) 0,01W 2x10E-6J RB1
635 - <720 (OD1+) DIRM LB1
720 - <770 (OD2+) DIRM LB2
770 - <800 (OD3+) DIRM LB3
800 - <840 (OD4+) DIRM LB4
840 - <880 (OD5+) DIRM LB5
880 - <960 (OD6+) DIRM LB6
960 - <1030 (OD7+) D LB6 + IRM LB7
1030 - 1400 (OD8+) D LB6 + IRM LB8
>1400 - 3600 (OD4+) D LB3 + I LB4 + R LB3Y + M LB1
>3600 - 4800 (OD3+) DI LB3 + R LB3Y + M LB1
>4800 - 11500 (OD4+) DI LB4 + R LB3Y
