laser safety window P1P10 (3mm)
The laservision plastic laser safety window 000.P1P10.2001 (3mm, OD 8+) features very high protection ratings within the wavelength area 1,030-1,400nm (D LB6 – IRM LB8) and an additional alignment protection at 635-690nm (RB1). The laser safety window offers a very good color view and a 16% VLT. It is an alternative to conventional green laser safety glass windows. This blue laser safety window is customized available up to a size of 3,000 x 2,000mm. This window is CE marked with 5 and 10 sec. of test time.
- Order number: 000P1P102001
- GTIN: 4050369030664
- Pack unit: 1 pieces
- Weight incl. packaging: 0,07 kg
- Weight excl. packaging: 0,07 kg
The laser safety window P1P10 is a new blue absorbing laser protection filter without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser protection window has a daylight transmission of approx. 16%, is CE certified and available in different dimensions and with 3 or 6mm thickness. A broadband laser protection exists from 635nm to 11,500nm. It is especially suitable against disc- and fiber lasers with an OD8+ at 1,030-1,400nm (D LB6 + IRM LB8) and against 960nm laser diodes and Nd:YAG lasers. It also exists an additional alignment protection between 635 and 690nm. Please calculate required protection levels before using the laser safety window and compare with the filter provided.
Specifications
| Coating: | Anti-scratch on both sides |
|---|---|
| Colour: | blue |
| Filter material: | Plastic |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 3mm |
| Protection Class / Norm: | EN 207 full protection, EN 208 Alignment protection, EN 60825 |
| Protection range: | Infrared, near infrared, ultraviolett, visible |
| VLT (approx.): | 16% |
| Visual brightness: | Sufficient |
| colour recognition: | Good |

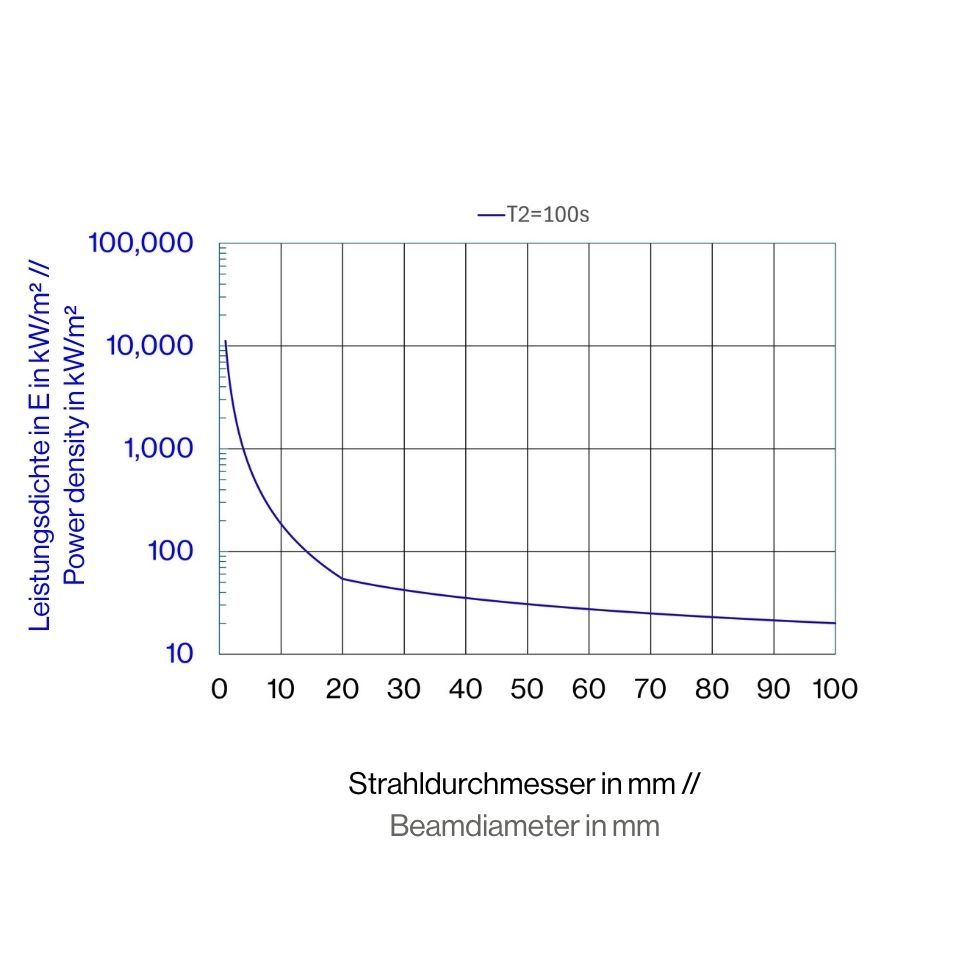

| 840-3000nm | 40,7 kW/m2 | T3 | tmax = 63s |
| 840-3000nm | 18,1 kW/m2 | T2 | tmax = 105s |
| 5200-14700nm | 50,9 kW/m2 | T2 | tmax = 105s |

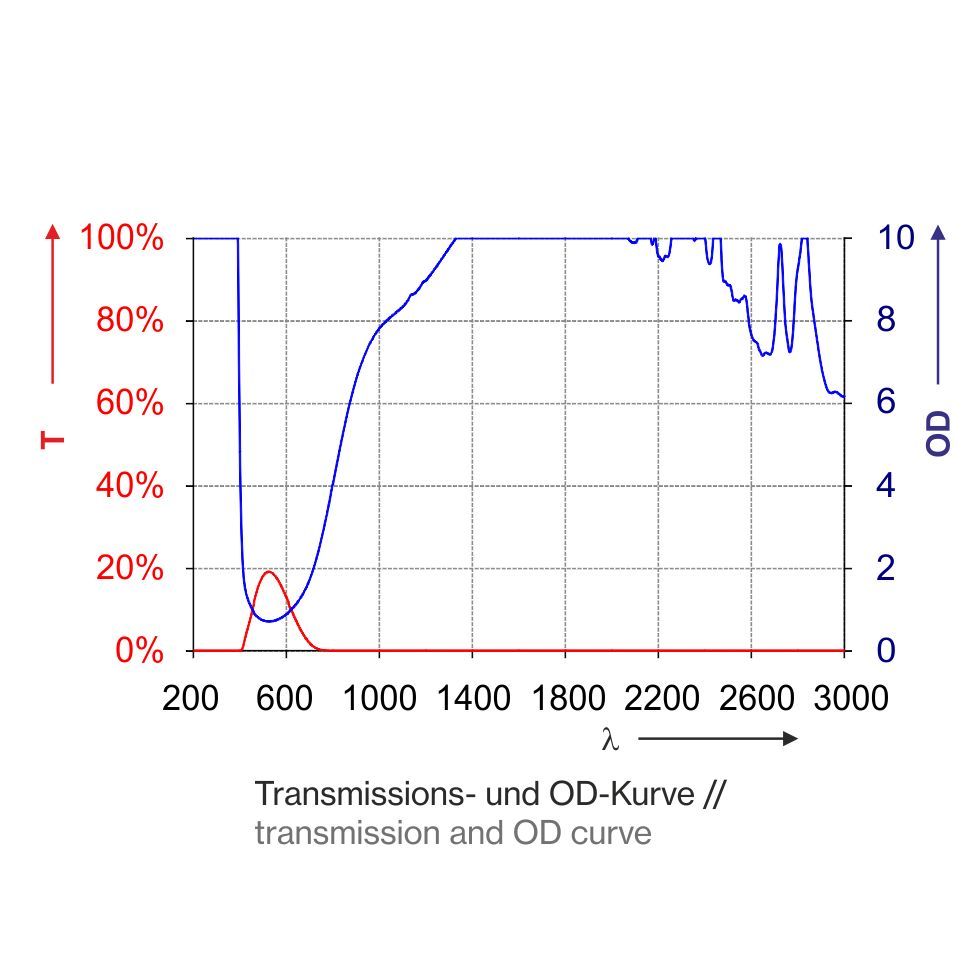

| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 180 - 315 | (OD10+) | D LB10 + IR LB4 + M LB6 |
| >315 - 385 | (OD8+) | D LB6 + IRM LB8 |
| >385 - 400 | (OD4+) | DIRM LB4 |
| 635 - 690 | (OD1-2+) | 0,01W 2x10E-6J RB1 |
| 635 - <720 | (OD1+) | DIRM LB1 |
| 720 - <770 | (OD2+) | DIRM LB2 |
| 770 - <800 | (OD3+) | DIRM LB3 |
| 800 - <840 | (OD4+) | DIRM LB4 |
| 840 - <880 | (OD5+) | DIRM LB5 |
| 880 - <960 | (OD6+) | DIRM LB6 |
| 960 - <1030 | (OD7+) | D LB6 + IRM LB7 |
| 1030 - 1400 | (OD8+) | D LB6 + IRM LB8 |
| >1400 - 3600 | (OD4+) | D LB3 + I LB4 + R LB3Y + M LB1 |
| >3600 - 4800 | (OD3+) | DI LB3 + R LB3Y + M LB1 |
| >4800 - 11500 | (OD4+) | DI LB4 + R LB3Y |
