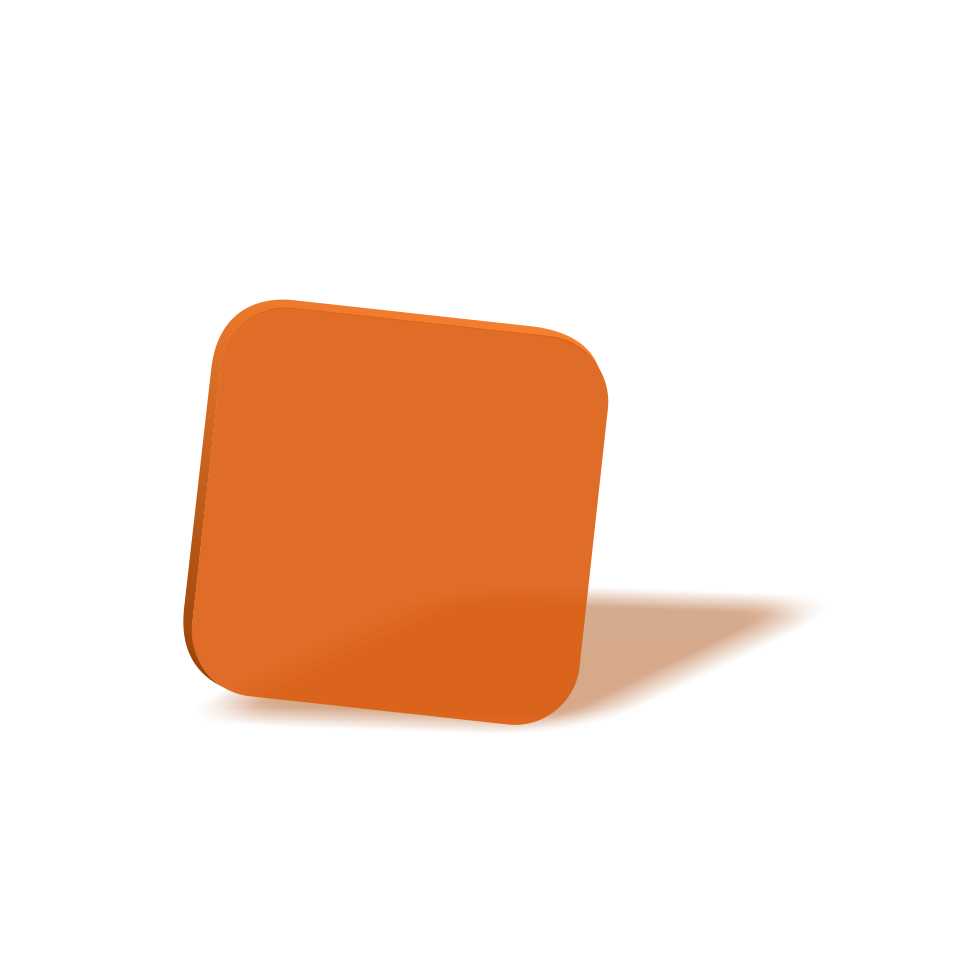

laser safety window P1N01

The laservision plastic laser safety window P1N01 is a window for green laser systems up to 535nm and offers an OD 10+ from 180 - 370nm and an OD6+ at 532nm. The orange colored filter material features 38% VLT and is user specific available up to a size of 1219x915mm. The thickness is 3mm. The window is CE certified according to EN 60825-4 and has additionally defined DIN 207 LB protection levels, which are confirmed by manufacturer's declaration based on external test reports.

  • Order number: 000P1N011007
  • GTIN: 4050369027046
  • Weight incl. packaging: 0,97 kg
  • Weight excl. packaging: 0,97 kg
available standard sizes (mm)
Product number: 000P1N011007
Product information "laser safety window P1N01"

The laser safety window type P1N01 is an orange absorbing laser protection filter without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser safety filter has a daylight transmission of approx. 38%. The laser safety filter laservision P1N01 is CE-certified and is available in different dimensions. It is especially suitable for green lasers with 532nm wavelength. It offers OD10+ from 180nm - 370nm and an OD6+ at 532nm. Please calculate required optical density levels before using the laser safety window and compare with the window provided.

Specifications

Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
Coating: no coating
Colour: orange
Filter material: Plastic
Filter technology: Absorption filter
Filter thickness: ca. 3mm
Protection Class / Norm: EN 207 full protection according to manufacturer's declaration , EN 60825
Protection range: ultraviolett, visible
VLT (approx.): 38%
Visual brightness: Sufficient
colour recognition: Slightly limited
200-535nm | 37,7 kW/m2 | T2 | tmax = 105s

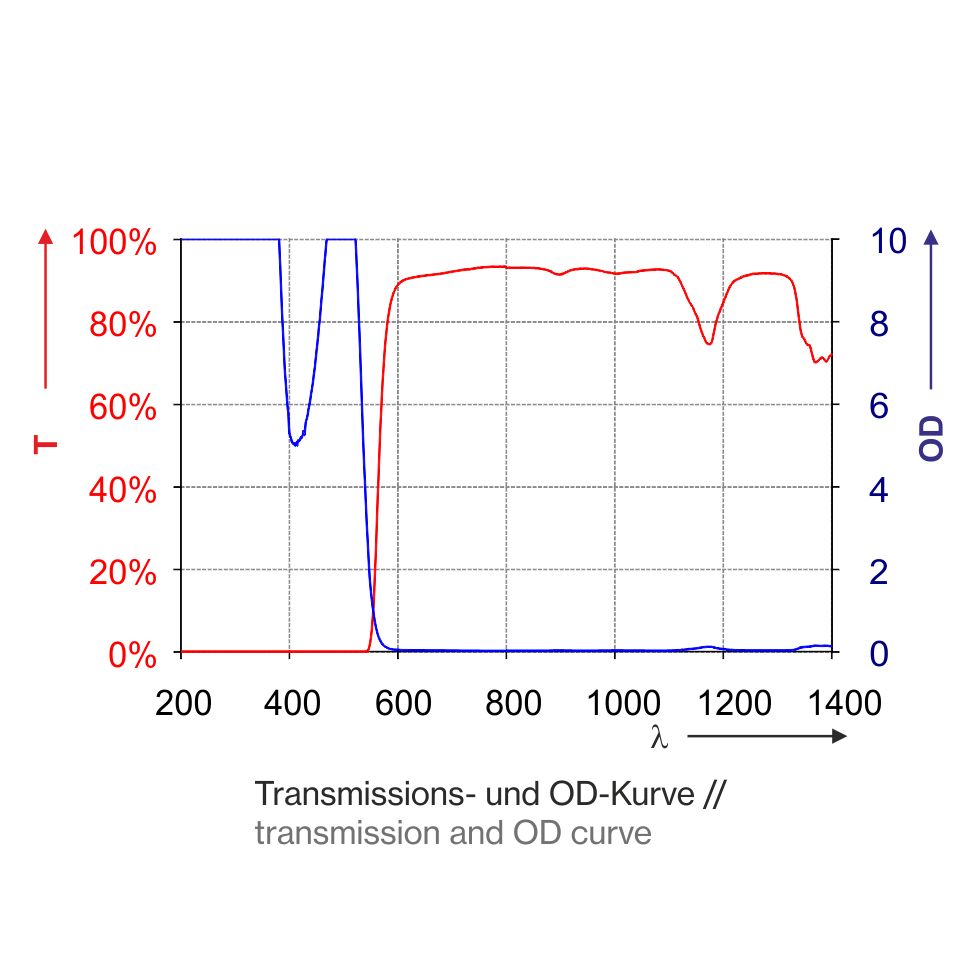

WAVELENGTH (NM) OD
180 - 315 (OD10+)
>315 - 370 (OD10+)
>370 - 383 (OD8+)
>383 - 391 (OD6+)
>391 - <445 (OD5+)
445 - <455 (OD6+)
455 - <463 (OD7+)
463 - 524 (OD8+)
>524 - 532 (OD6+)
>532 - 535 (OD5+)
>535 - 538 (OD4+)
>538 - 541 (OD3+)
>541 - 545 (OD2+)
>545 - 550 (OD1+)
5400 - <10600 (OD5+)
10600 - 11000 (OD6+)
WAVELENGTH (NM) OD OPERATING MODE / TESTED PROTECTION LEVEL
180 - 315 (OD10+) D LB6 + IR LB3 + M LB6Y
>315 - 370 (OD10+) D LB5 + IR LB6 + M LB6Y
>370 - 383 (OD8+) D LB5 + IR LB6 + M LB6Y
>383 - 391 (OD6+) D LB5 + IR LB6 + M LB6Y
>391 - <445 (OD5+) DIRM LB5
445 - <455 (OD6+) D LB5 + IR LB6 + M LB6Y
455 - <463 (OD7+) D LB5 + IR LB6 + M LB6Y
463 - 524 (OD8+) D LB5 + IR LB6 + M LB6Y
>524 - 532 (OD6+) D LB5 + IR LB6 + M LB6Y
>532 - 535 (OD5+) DIRM LB5
>535 - 538 (OD4+) DIRM LB4
>538 - 541 (OD3+) DIRM LB3
>541 - 545 (OD2+) DIRM LB2
>545 - 550 (OD1+) DIRM LB1

Other products in this category

laser safety window P1E12
available standard sizes (mm): 200 x 100
The plastic laser safety window P1E12 for UV lasers, blue and green laser wavelengths up to 540nm. Buy from laservision!

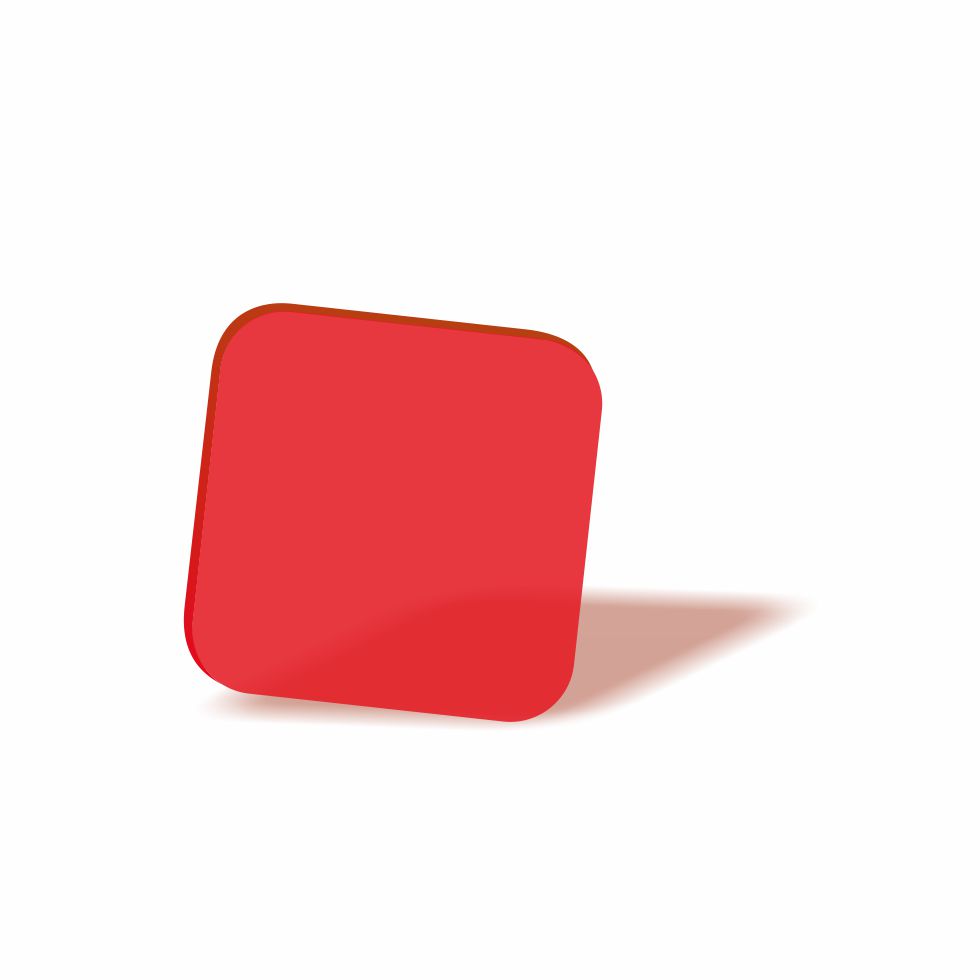

laser safety window P1E13
available standard sizes (mm): 200 x 100
The plastic laser safety window P1E13 for UV lasers, blue and green laser wavelengths up to 540nm. Buy from laservision!
laser safety window P1L03
available standard sizes (mm): 200 x 100
The plastic laser safety window P1L03 is suitable for UV and green lasers, as well as pump diodes and YAG lasers. Buy from laservision!

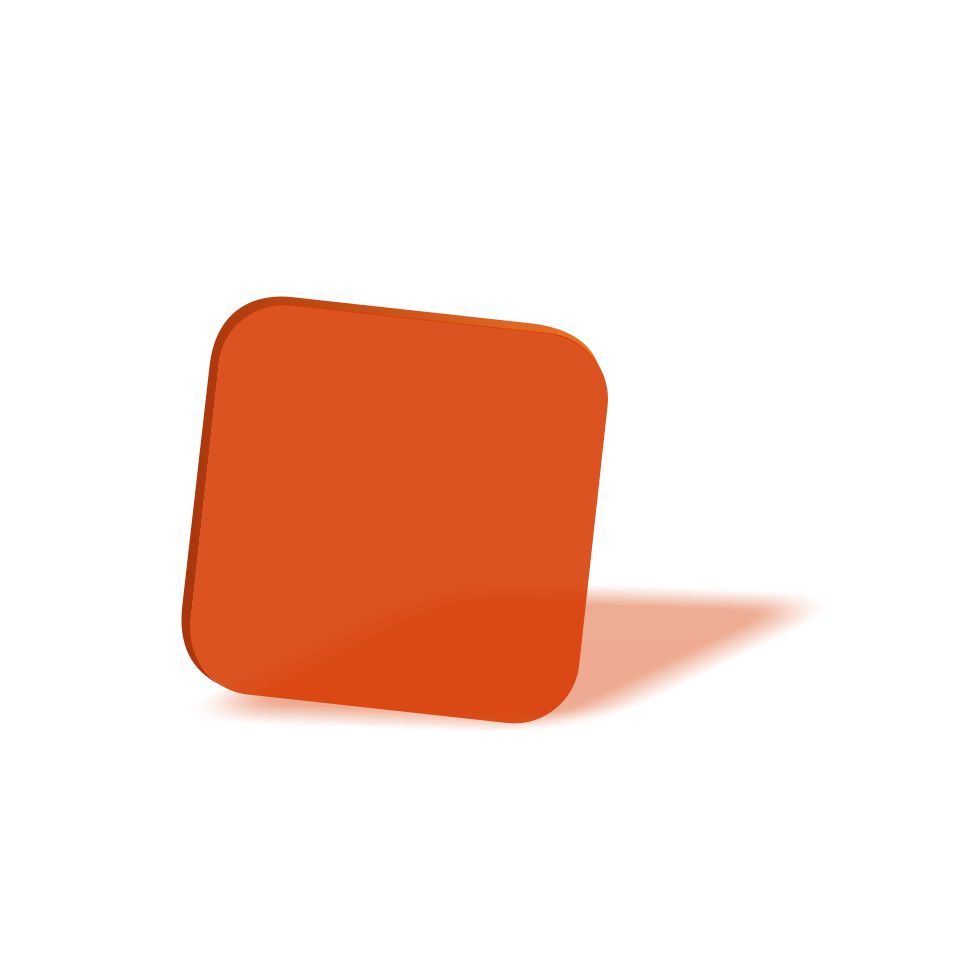

laser safety window T1M01
available standard sizes (mm): 200 x 100
The mineral glass laser safety window T1M01 offers high protection against UV, NIR and IR lasers (180-532nm and 808-11500nm). Buy from laservision!

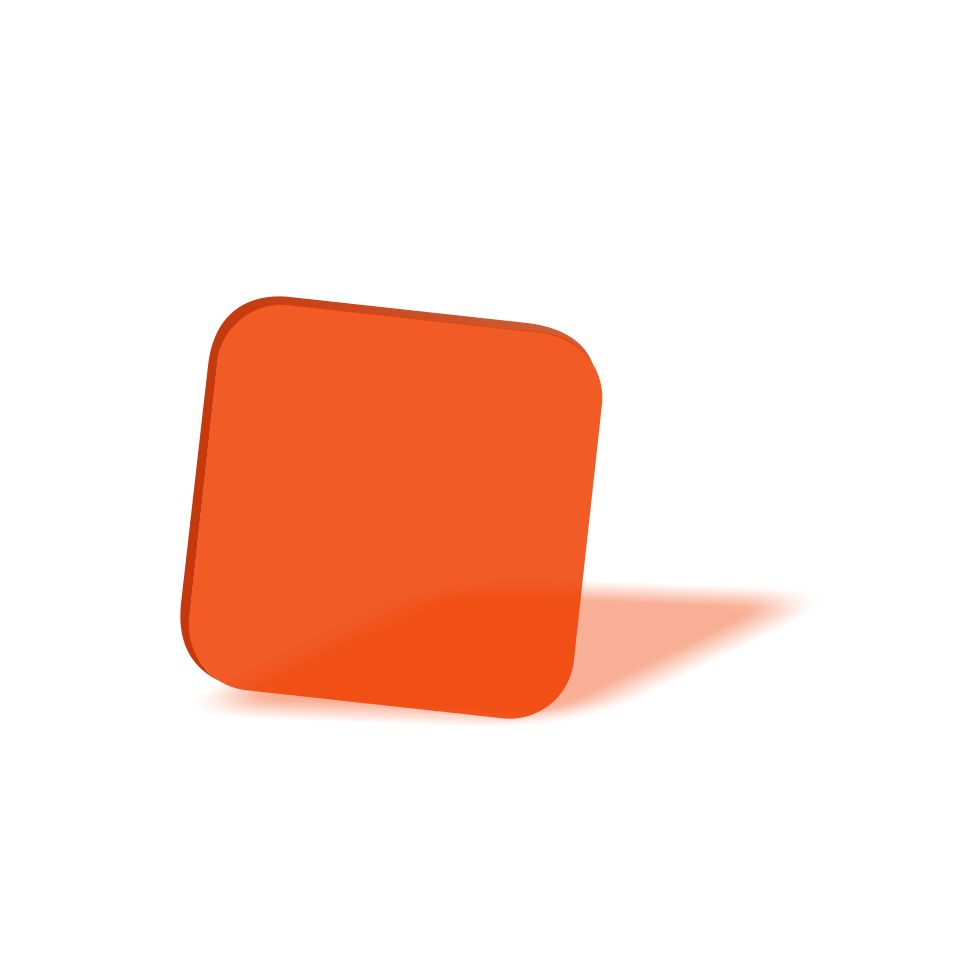

laser safety window T1E02
