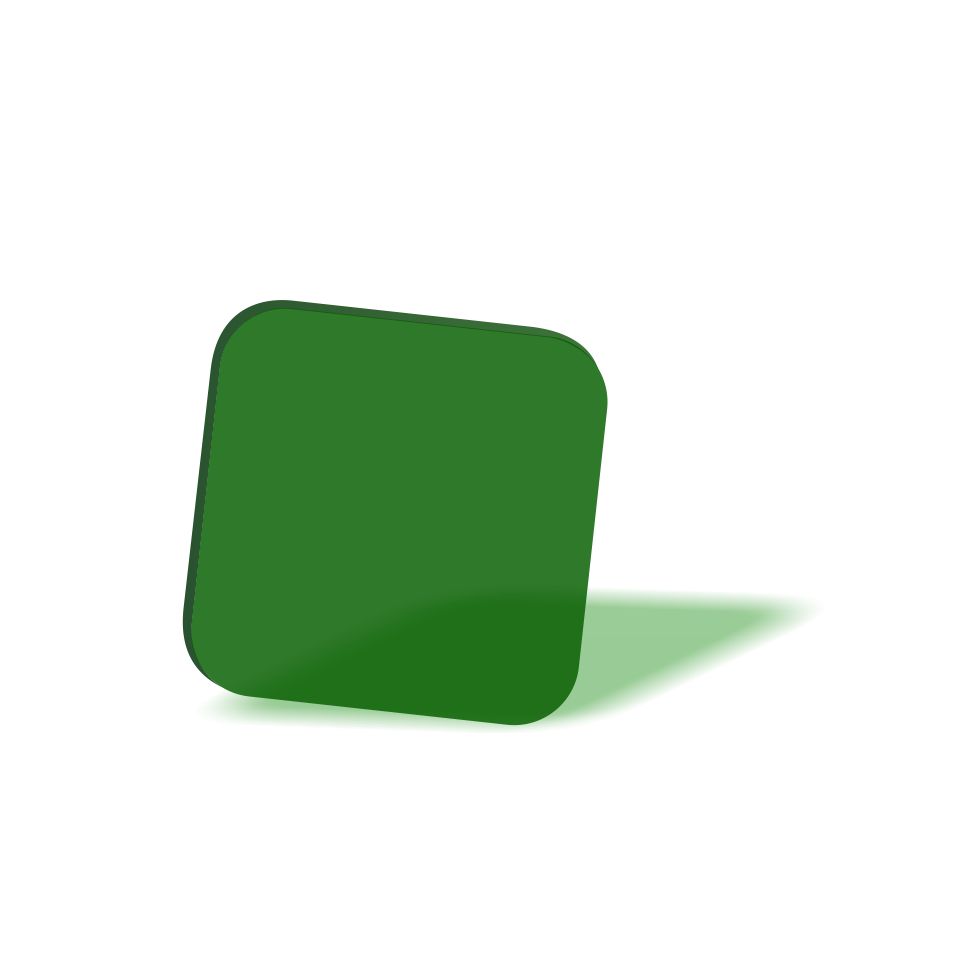

laser safety window P1H09 (3mm)
The laser protection window 000.P1H09.1001 from laservision is suitable for Nd:YAG or fiber lasers. It is certified according to DIN EN 60825-4 and CE marked accordingly. There is a protection (OD6 +) in the NIR range at 1064nm-1100nm as well as an OD4 + in the red wavelength range from 630nm to 656nm. This enables use in machines with seam tracking sensors or similar measuring systems. It has a daylight transmission of around 18% and has sufficient visual brightness and color vision. The laser protection window 000.P1H09.1001 is available in various standard and customer-specific dimensions up to a size of 3000 x 2000 mm².
€112.00*
Prices plus VAT plus shipping costs
-
The delivery time is 1-3 weeks.
- Order number: 000P1H091001
- GTIN: 4050369072497
- Pack unit: 1 pieces
- Weight excl. packaging: 0,08 kg
| Colour: | dark green |
|---|---|
| Filter material: | Plastic |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 3mm |
| Protection Class / Norm: | EN 60825 |
| Protection range: | near infrared, visible |
| VLT (approx.): | 18% |
| Visual brightness: | Sufficient |
| colour recognition: | Sufficient |
| 897-960nm | 124 kW/m2 | T2 | tmax = 105s |
| 960-1190nm | 166 kW/m² | T2 | tmax = 105s |

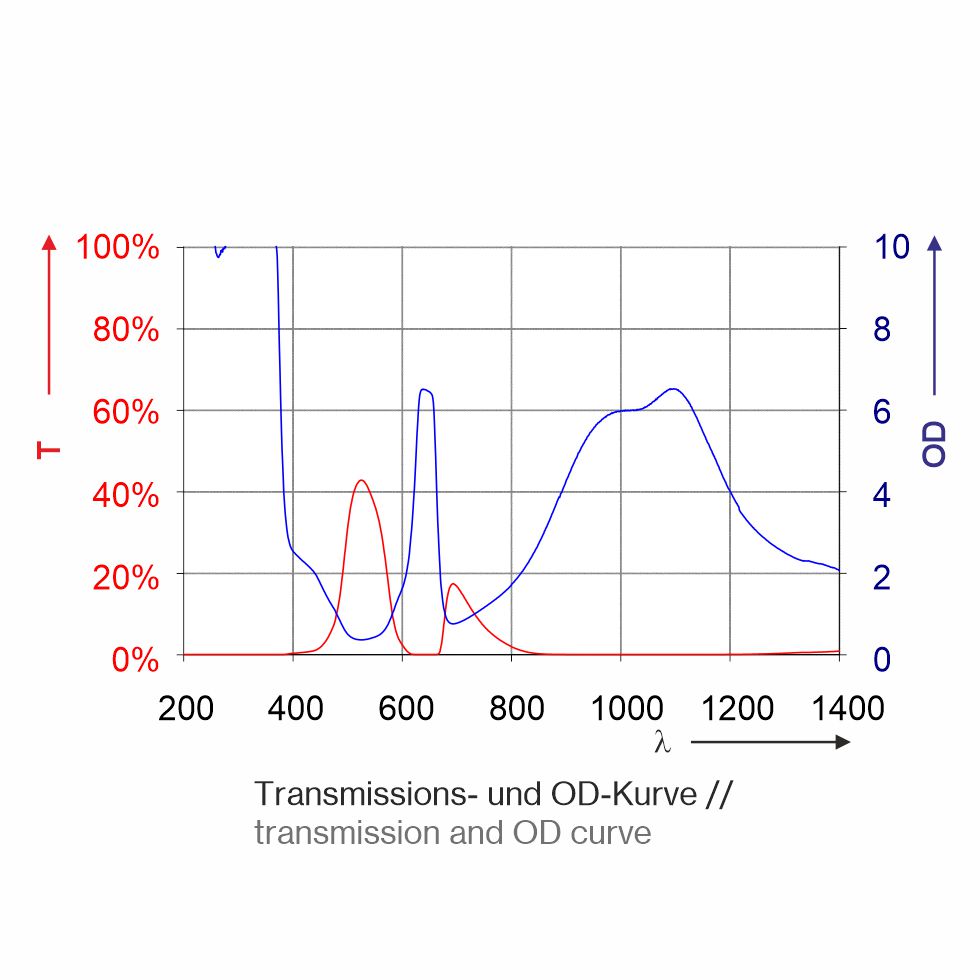

| Wellenlänge (nm) | OD |
| 180-365 | (OD8+) |
| >365-380 | (OD4+) |
| >380-390 | (OD2+) |
| >390-460 | (OD1+) |
| 600-<615 | (OD1+) |
| 615-<621 | (OD2+) |
| 621-<630 | (OD3+) |
| 630-656 | (OD4+) |
| >656-664 | (OD3+) |
| >664-667 | (OD2+) |
| >667-674 | (OD1+) |
| 750-<830 | (OD1+) |
| 830-<865 | (OD2+) |
| 865-<897 | (OD3+) |
| 897-<940 | (OD4+) |
| 940-<1064 | (OD5+) |
| 1064-1100 | (OD6+) |
| >1100-1150 | (OD5+) |
| >1150-1190 | (OD4+) |
| >1190-1235 | (OD3+) |
| >1235-1280 | (OD2+) |
| >1280-1440 | (OD1+) |
