laser safety window P1E13
€115.00*
Prices plus VAT plus shipping costs
-
The delivery time is 1-3 weeks.
- Order number: 000P1E131001
- GTIN: 4050369078291
- Weight incl. packaging: 0,08 kg
- Weight excl. packaging: 0,08 kg
The laser safety window type P1E13 is a red-orange absorbing laser protection filter without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser safety filter has a daylight transmission of approx. 21%. The laser safety filter laservision P1E13 is CE-certified and is available in different dimensions. It is especially suitable for frequency doubled disk, fibre and Nd:YAG lasers as well as diode lasers within the blue and green range of wavelengths and UV lasers. Please calculate required optical density levels before using the laser safety window and compare with the window provided.
Specifications
| Coating: | no coating |
|---|---|
| Colour: | red-orange |
| Filter material: | Plastic |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 3mm |
| Protection Class / Norm: | EN 60825-4 |
| Protection range: | ultraviolett, visible |
| VLT (approx.): | 21% |
| Visual brightness: | Sufficient |
| colour recognition: | Slightly limited |
| 200-535nm | 37,7 kW/m2 | T2 | tmax = 105s |

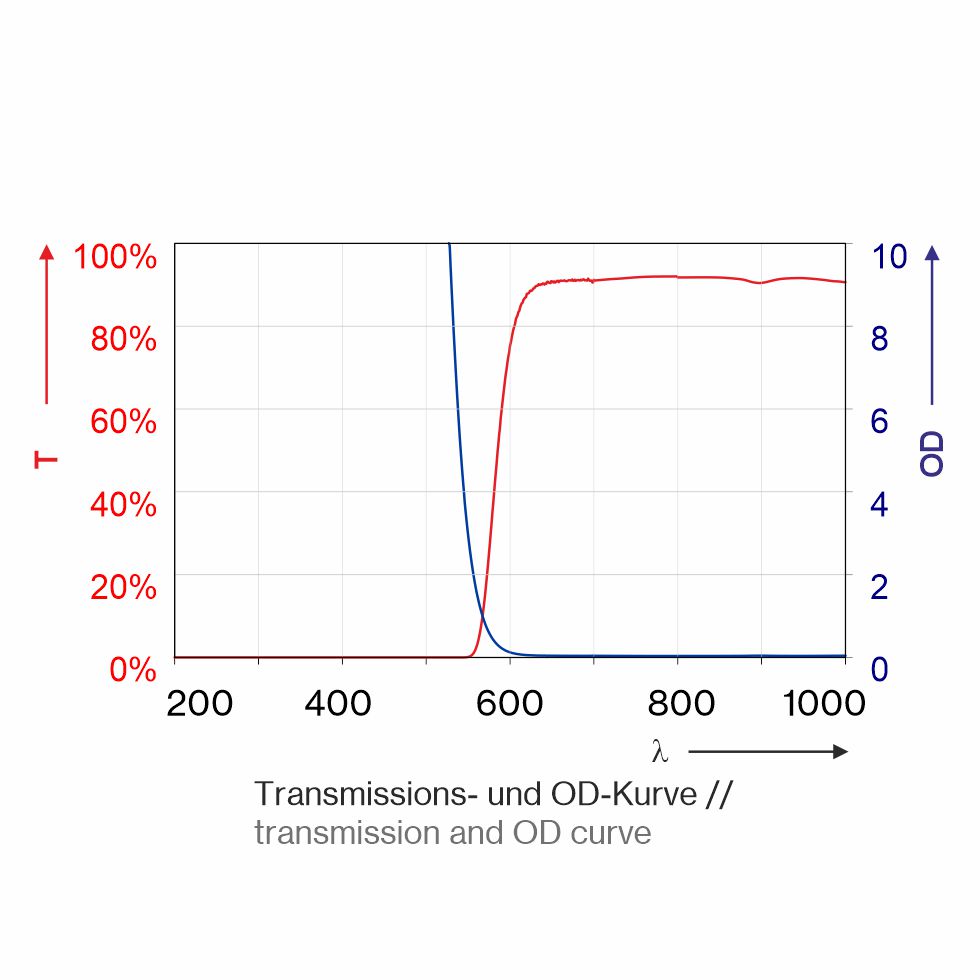

| WAVELENGTH (NM) | OD |
| 180 - 525 | (OD10+) |
| >525 - 532 | (OD8+) |
| >532 - 535 | (OD7+) |
| >535 - 540 | (OD5+) |
| >540 - 545 | (OD4+) |
| >545 - 555 | (OD2+) |
