laser safety window T2K03
The laservision mineral glass laser safety window 000.T2K03.1001 without lamination provides a very high protection effect within the NIR spectral range between 1,050 to 1,400nm. The light grey filter material features a 66% VLT and is customized available up to a size of 297x210nm. The thickness is approximately 4,0 - 6,5 mm. This window is only marked with optical density (OD) and certified acc. DIN EN 60825-4.
- Order number: 000T2K031001
- GTIN: 4050369016255
- Pack unit: 1 pieces
- Weight incl. packaging: 0,50 kg
- Weight excl. packaging: 0,26 kg
Product number:
000T2K031001
Product information "laser safety window T2K03"
The laser safety filter type T2K03 is a light gray absorbing mineral glass filter without additional coating and without lamination. The protection is based on absorption of the laser light within the bulk material. In comparison with filter T1K02 this window is negligibly darker, but possesses especially within the range 1050-1400nm higher protection levels. The thickness is approximately 4,0 - 6,5 mm. The filter Type T1K03 has very good daylight transmission of approx. 66% which is comparable to that of a normal window. Color recognition is unrestricted. The laser protection filter is especially suitable for IR lasers starting from 950nm up to 1400nm. Additionally it protects against Er:YAG and CO2 lasers and in the whole range between 1400 and 2800nm. The laser safety window is CE certified and available in different standard- and customized sizes. Please calculate required protection levels before using laser safety filters and compare with the filter provided.
Specifications
Protection range
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
| Coating: | no coating |
|---|---|
| Colour: | light grey |
| Filter material: | Mineral glass |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 4,0 - 6,5 mm |
| Properties: | No neutral glass lamination |
| Protection Class / Norm: | EN 207 full protection, EN 60825 |
| Protection range: | Infrared, near infrared |
| VLT (approx.): | 66% |
| Visual brightness: | Very good |
| colour recognition: | Excellent |
| 1000-2100nm | 61,1 kW/m2 | T3 | tmax = 10,5s |

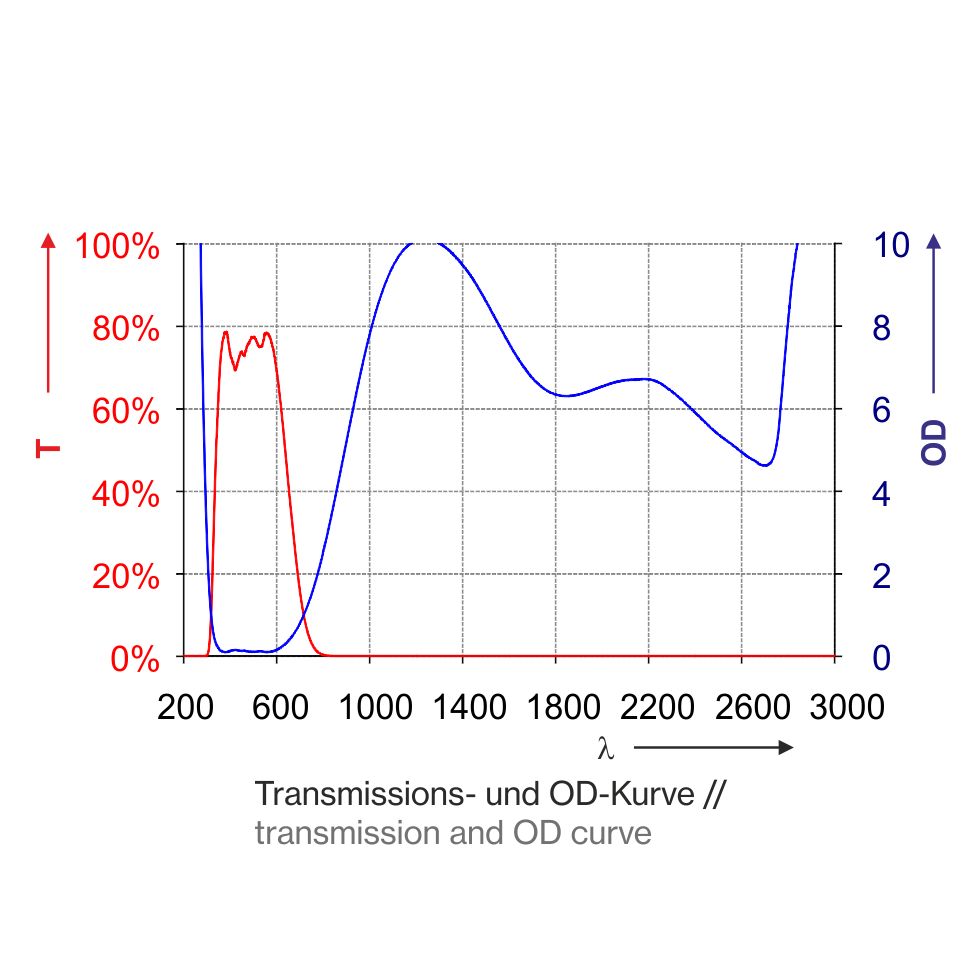

| Wavelength (NM) | OD |
| 940 - 1000 | (OD4+) |
| >1000 - 1050 | (OD7+) |
| >1050 - 1400 | (OD8+) |
| >1400 - 2100 | (OD4+) |
| >2100 - 3000 | (OD4+) |
| >3000 - 11500 | (OD5+) |
