laser safety window T1M01
The laservision mineral glass laser safety window T1M01 with lamination provides a high protective effect against UV, NIR and IR lasers within the spectral area 180-532nm and 808-11,500nm. The orange filter material features a 25% VLT and is customized available up to a size of 297x210nm. The thickness is approximately 10,0 - 13,1 mm. This window is certified acc. EN207 and CE marked with 5 sec. of test time.
- Order number: 000T1M011001
- GTIN: 4050369018983
- Pack unit: 1 pieces
- Weight incl. packaging: 0,80 kg
- Weight excl. packaging: 0,53 kg
The laser protection window type T1M01 is an orange absorbing laminated mineral glass filter without additional coating. The laser protection is based on absorption of the laser light within the bulk material. The filter T1M01 has an daylight transmission of approx. 25% and is mainly used for NIR laser (YAG, fibre, disc) and the harmonics (green, blue, UV). The laser protection window is CE certified (including M-rating for ultra short pulses) and is available in different standard and custom dimensions. Please calculate required protection levels before using laser safety window and compare with the window provided.
Specifications
| Coating: | no coating |
|---|---|
| Colour: | orange |
| Filter material: | Mineral glass |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 10,0 - 13,1 mm |
| Properties: | Neutral glass lamination |
| Protection Class / Norm: | EN 207 full protection, EN 60825 |
| Protection range: | Infrared, near infrared, ultraviolett, visible |
| VLT (approx.): | 25% |
| Visual brightness: | Good |
| colour recognition: | Slightly limited |
| 200-532nm | 203 kW/m2 | T2 | tmax = 105s |
| 890-1400nm | 265 kW/m2 | T2 | tmax = 105s |
| 3000-25000nm | 409 kW/m2 | T2 | tmax = 105s |

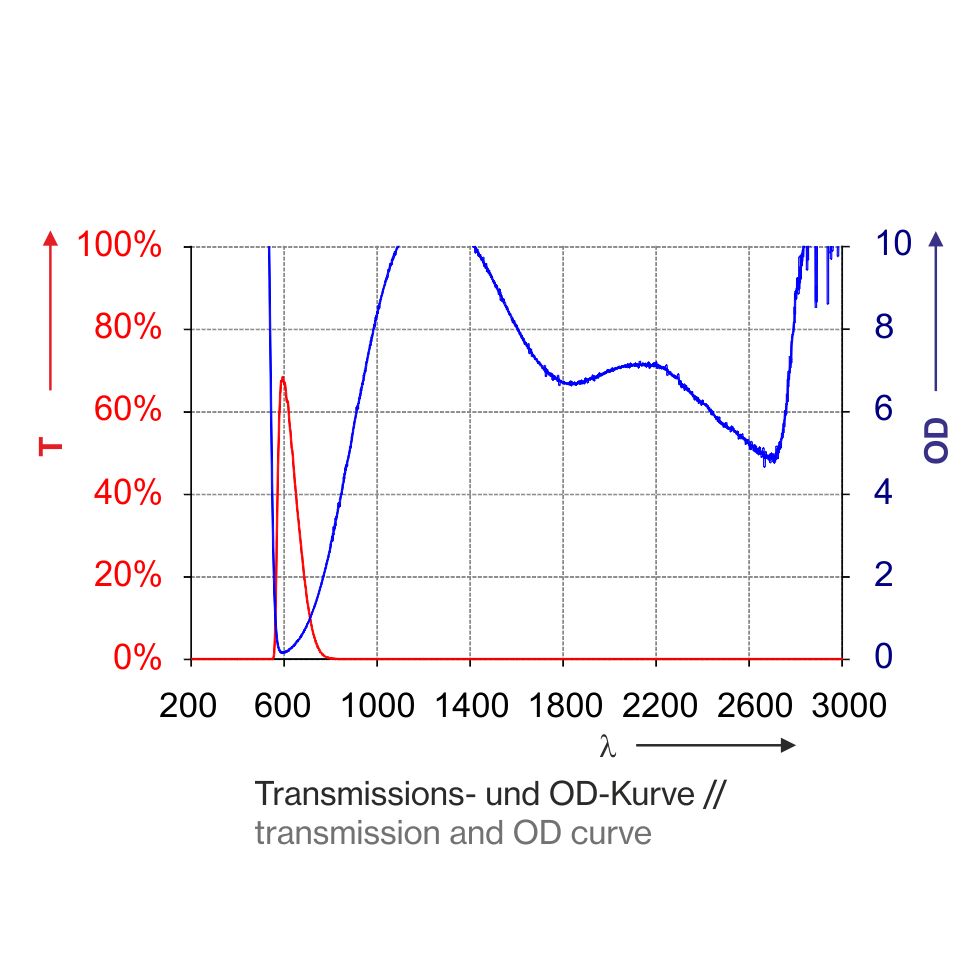

| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 180 - 315 | (OD10+) | D LB10 + IR LB5 |
| >315 - 532 | (OD8+) | D LB7 + IR LB8 + M LB8Y |
| 808 - <890 | (OD3+) | DIRM LB3 |
| 890 - <940 | (OD5+) | DIRM LB5 |
| 940 - <1000 | (OD6+) | DIRM LB6 |
| 1000 - <1025 | (OD7+) | DIR LB7 + M LB7Y |
| 1025 - 1100 | (OD9+) | D LB7 + I LB9 + R LB8 + M LB8Y |
| >1100 - 1400 | (OD8+) | D LB7 + IR LB8 + M LB8Y |
| >1400 - 3000 | (OD4+) | DI LB4 |
| >3000 - 11500 | (OD5+) | DI LB5 |
