laser safety window T1E02
The laservision mineral glass laser safety window 000.T1E02.1001 with lamination provides a very high protective effect against blue and green lasers within the spectral area of 315-532nm (D LB7, IR LB8). The orange filter material features a 40% VLT and is customized available up to a size of 297x210nm. The thickness is approximately 5,0 - 7,7 mm. This window is certified acc. EN207 and CE marked with 5 and 10 sec. of test time.
- Order number: 000T1E021001
- GTIN: 4050369017412
- Pack unit: 1 pieces
- Weight incl. packaging: 0,59 kg
- Weight excl. packaging: 0,28 kg

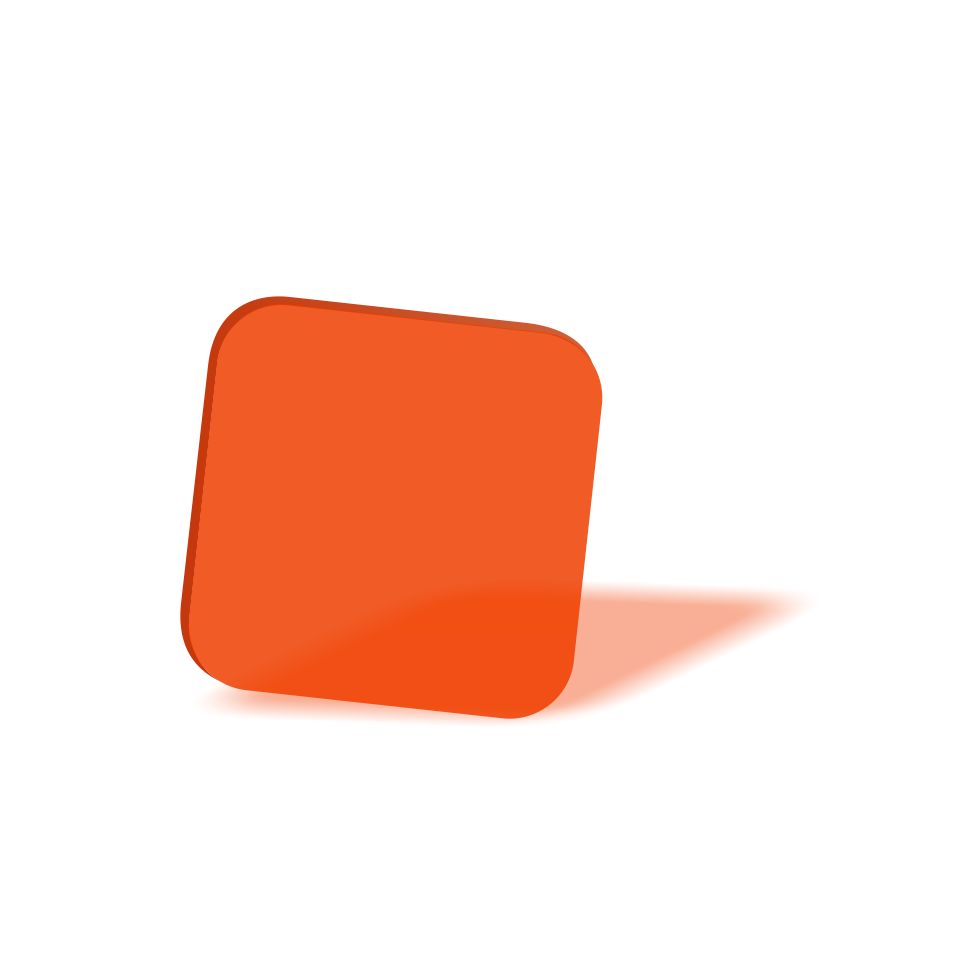

The laser safety filter Type 000.T1E02.1001 is an orange absorbing mineral glass filter without additional coating. The protection is based on absorption of the laser light within the bulk material. The filter Type T1E02 has a daylight transmission of approx. 40%, the colour recognition is slightly restricted. The laser protection filter is especially suitable for frequency converted Nd:YAG lasers. The filter Type T1E02 is available in four different frame styles and especially suitable for frequency converted Nd:YAG lasers with emission at 266nm/355nm or 532nm. Please calculate required protection levels before using laser safety filters and compare with the filter provided.
Specifications
| Coating: | no coating |
|---|---|
| Colour: | orange |
| Filter material: | Mineral glass |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 5,0 - 7,7 mm |
| Properties: | Neutral glass lamination |
| Protection Class / Norm: | EN 207 full protection, EN 60825 |
| Protection range: | ultraviolett, visible |
| VLT (approx.): | 40% |
| Visual brightness: | Good |
| colour recognition: | Limited |
| 200-532nm | 203 kW/m2 | T2 | tmax = 105s |
| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 180 - 315 | (OD10+) | D LB10 + IR LB5 + M LB5Y |
| >315 - 532 | (OD8+) | D LB7 + IR LB8 + M LB8Y |
