laser safety faceshield FS1P1P22
The safe and comfortable complete solution for eyes and face during hand-held laser welding. The face shield (FS1) offers certified laser protection in accordance with EN 207.
The face shield sets new standards in terms of wearing comfort. The total weight is only 386 g. The system is perfectly balanced thanks to an innovative folding mechanism with spring-loaded coupling rods. The height and width-adjustable headrest with the uvex spiderneck system perfectly rounds off the ergonomic support.
- Order number: FS1P1P221003
- GTIN: 4050369079120
- Pack unit: 1 pieces
- Weight incl. packaging: 0,50 kg
- Weight excl. packaging: 0,39 kg
Product number:
FS1P1P221003
Product information "laser safety faceshield FS1P1P22"
Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
| Coating: | Front side anti-scratch / rear side anti-fog |
|---|---|
| Filter: | P1P22 |
| Filter colour: | Blue grey |
| Filter material: | Plastic |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 2mm |
| Frame: | FS1 |
| Properties: | Lightweight, M-protection rating |
| Protection Class / Norm: | EN 166, EN 169, EN 207 full protection, EN 208 Alignment protection |
| Protection range: | Infrared, near infrared, ultraviolett, visible |
| VLT (approx.): | 12% |
| Visual brightness: | Sufficient |
| colour recognition: | Excellent |
3 LV 1 F K N CE
| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 180 - 315 | (OD10+) | D LB10 + IR LB4 |
| >315 - 385 | (OD8+) | D LB6 + IRM LB8 |
| >385 - 400 | (OD4+) | DIRM LB4 |
| 660 - <740 | (OD1+) | DIRM LB1 |
| 880 - <946 | (OD5+) | DIRM LB5 |
| 946 - <1030 | (OD6+) | DIRM LB6 |
| 1030 - 1400 | (OD7+) | D LB6 + IRM LB7 |
| >5250 - 14000 | (OD5+) | DI LB3 + R LB3Y |
Accessories
Swiss Air PAPR
Swiss Air PAPR complete respiratory protection system incl. control panel, mask and filter. Buy from laservision!
Chest protector made of leather (long)
Chest protector made of leather (long) compatible with Panoramaxx and FS1. Buy from laservision!
Other products in this category
laser safety faceshield FS1P1P10
Laser safety visor FS1P1P18 suitable for hand-held laser welding. Buy from laservision!

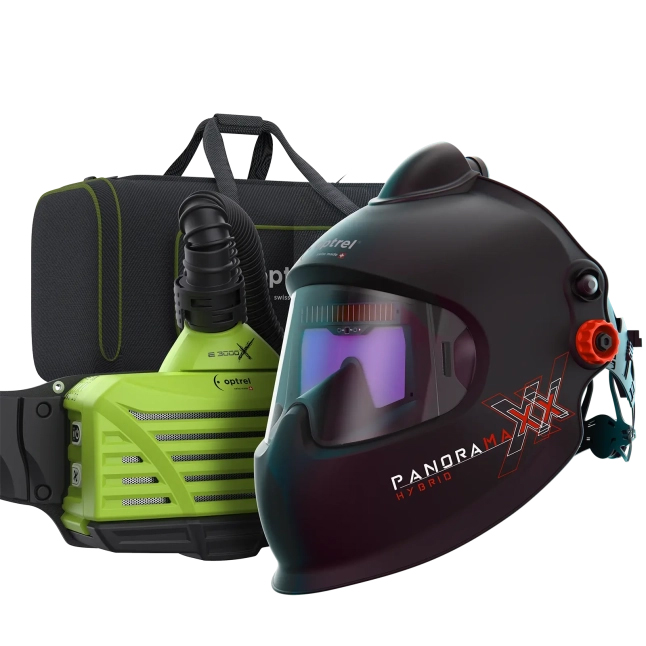

Panoramaxx Hybrid
