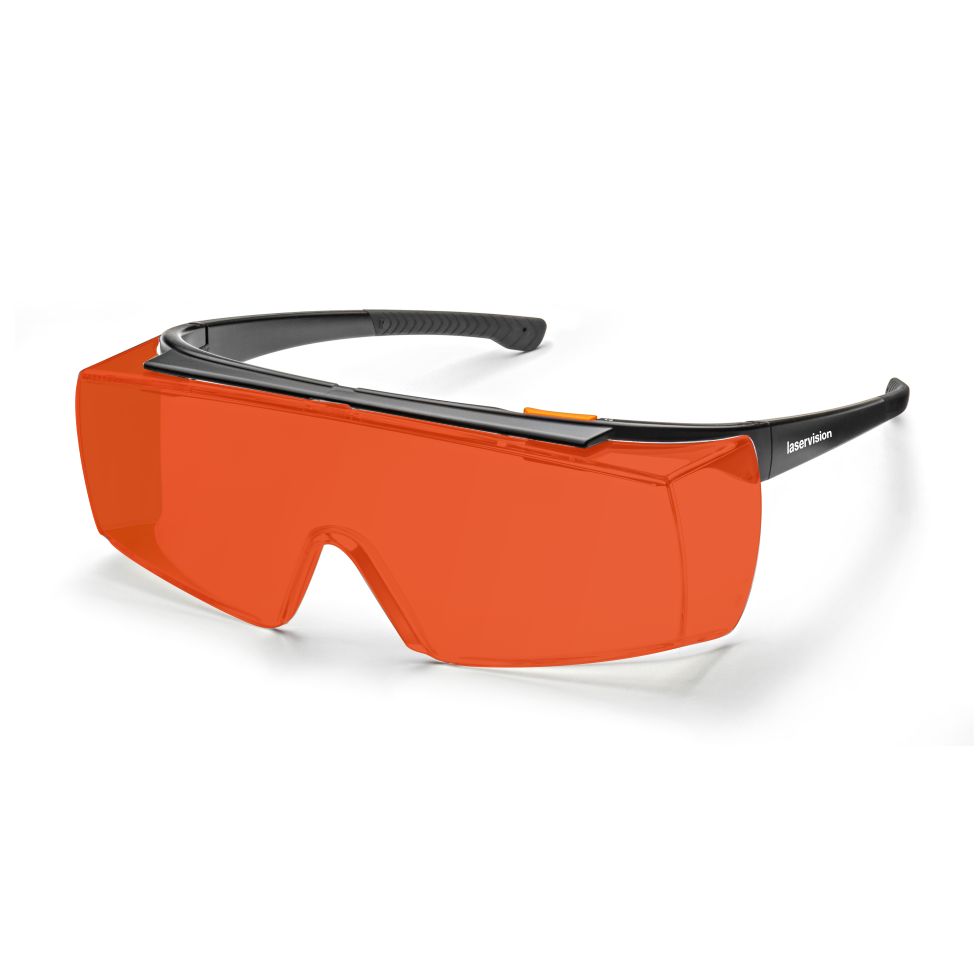

laser safety spectacle F42P1P17
The laser safety goggle F42.P1P17.1001 with its disinfectable standard temples, a quick-release system and cold-forming temple tips is particularly suitable for UV-, Nd: YAG, SHG, THG lasers and is ideal for high-energy pulsed lasers in the medical sector. It has M LB8 at 532nm and M LB8 at 1064nm. It can be worn as over-glasses on corrective lenses. The laser safety goggle has a daylight transmission of approx. 25% so that the subjective impression of the visual brightness is good. The delivery takes place in a soft case together with a cord for putting on the glasses. For a professional cleaning of laser safety spectacles laservision recommends the cleaning station (A99.CLSTA.1300).
- Order number: F42P1P171001
- GTIN: 4050369050938
- Pack unit: 1 pieces
- Weight incl. packaging: 0,24 kg
- Weight excl. packaging: 0,05 kg
Product number:
F42P1P171001
Product information "laser safety spectacle F42P1P17"
Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
| Coating: | no coating |
|---|---|
| Cushion: | No cushion |

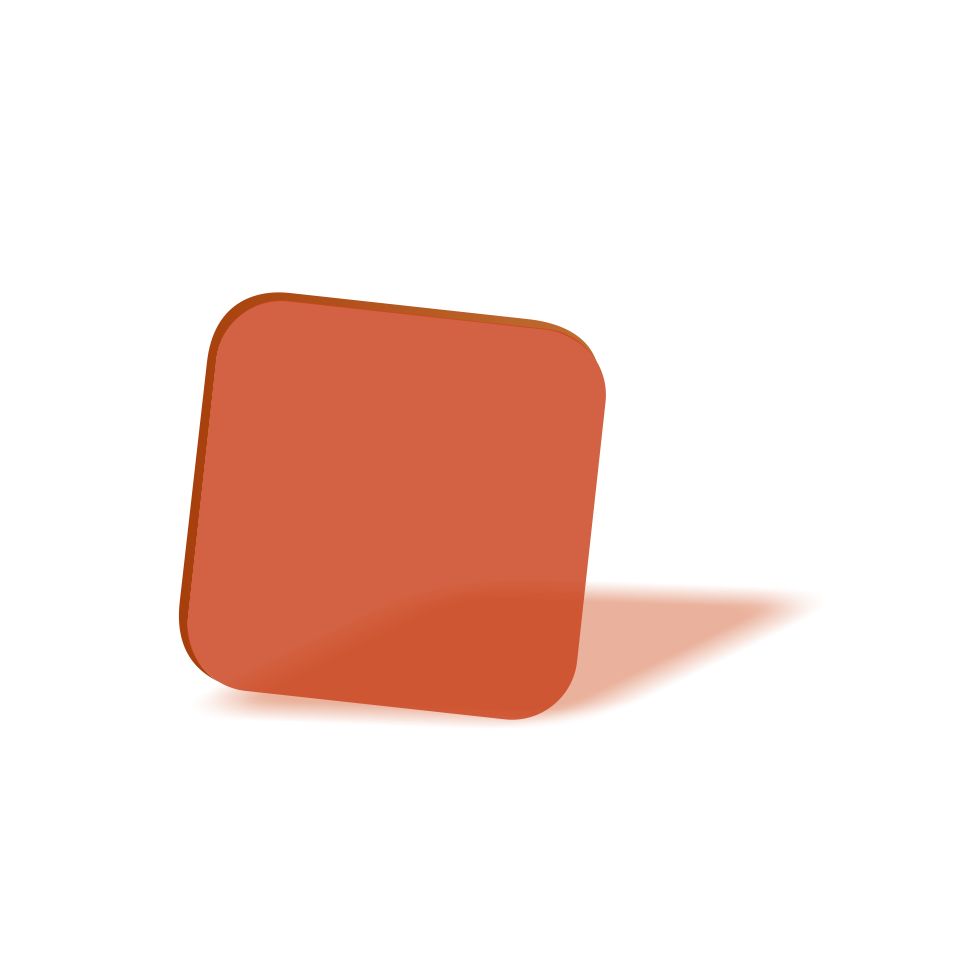

| Filter: | P1P17 |
| Filter colour: | Orange brown |
| Filter material: | Plastic |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 2mm |
| Frame: | F42 |
| Frame type: | OTG with temples |
| Properties: | Lightweight |
| Protection Class / Norm: | EN 207 full protection |
| Protection range: | Infrared, near infrared, ultraviolett, visible |
| VLT (approx.): | 25% |
| Visual brightness: | Good |

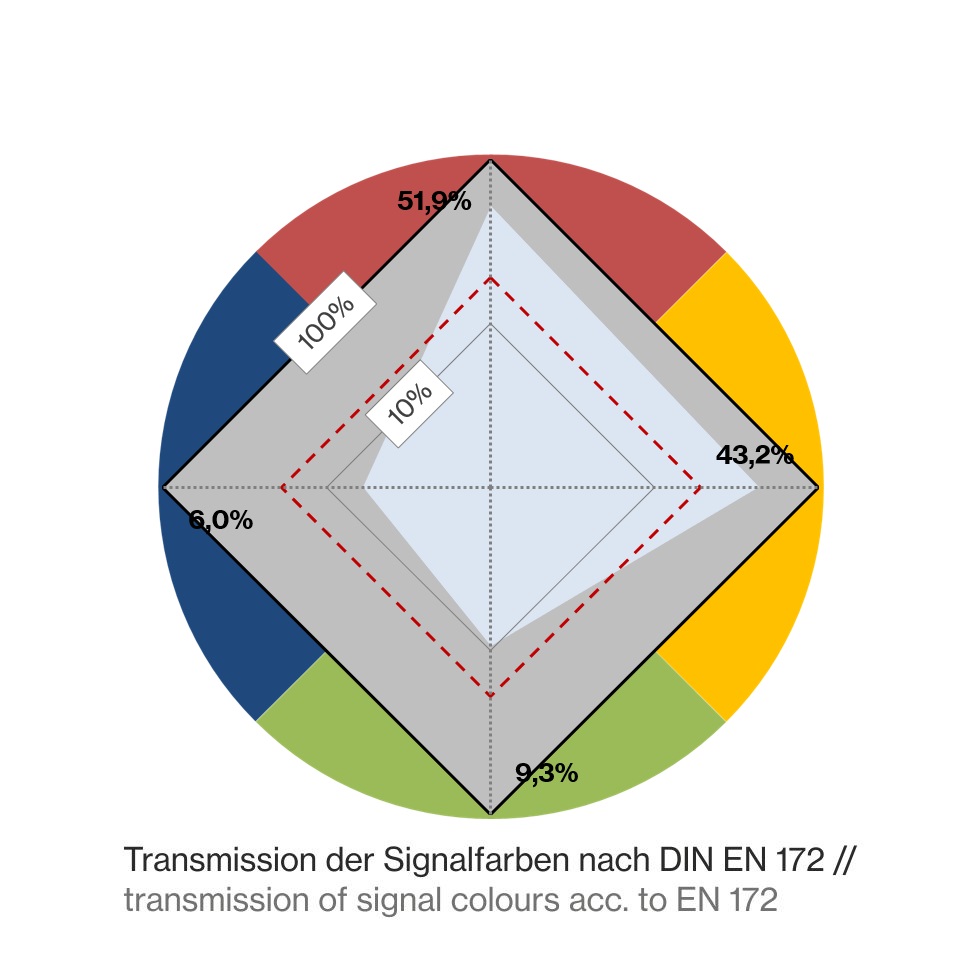

| colour recognition: | Limited |

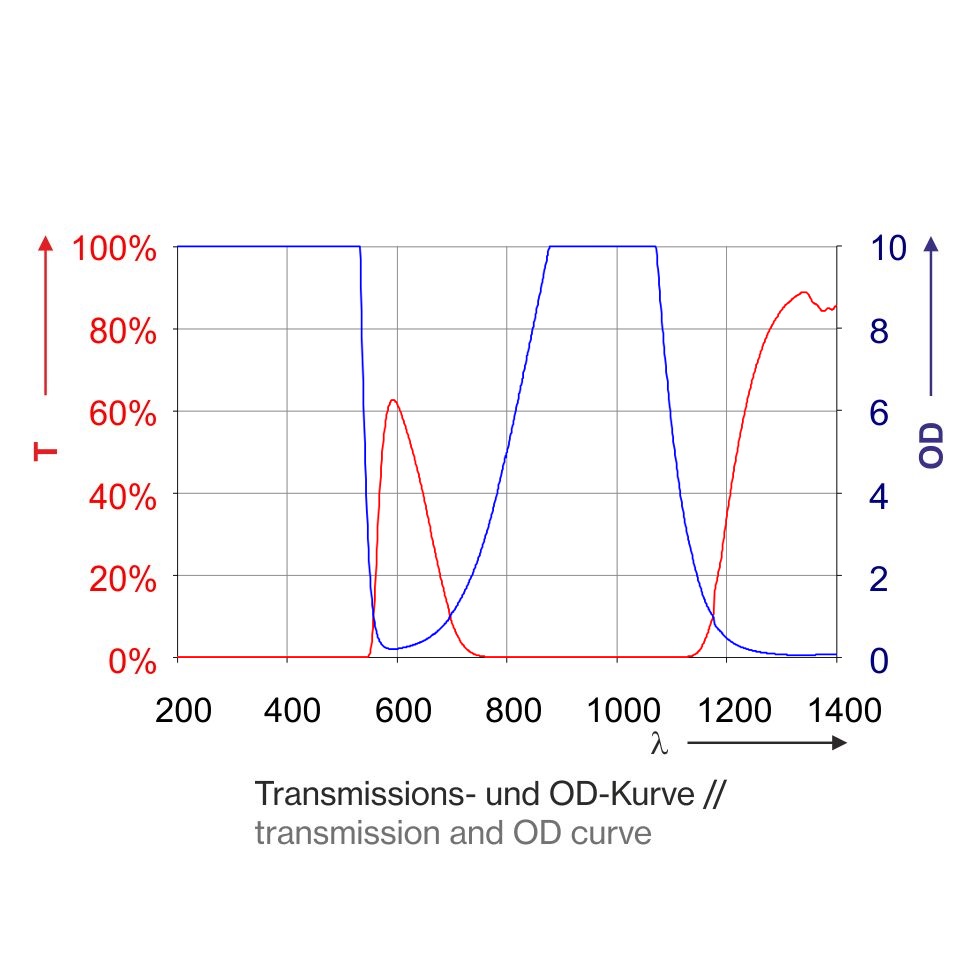

| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 180 - 315 | (OD10+) | D LB10 + IR LB4 + M LB6Y |
| >315 - 532 | (OD10+) | D LB6 + IR LB8 + M LB10 |
| >532 - 535 | (OD8+) | D LB6 + IRM LB8 |
| >535 - 539 | (OD6+) | DIRM LB6 |
| >539 - 541 | (OD5+) | DIRM LB5 |
| >541 - 545 | (OD3+) | DIRM LB3 |
| 785 - <800 | (OD4+) | DIRM LB4 |
| 800 - <816 | (OD5+) | DIRM LB5 |
| 816 - <835 | (OD6+) | DIRM LB6 |
| 835 - <850 | (OD7+) | D LB6 + IRM LB7 |
| 850 - <880 | (OD8+) | D LB6 + IRM LB8 |
| 880 - 1070 | (OD10+) | D LB6 + IR LB8 + M LB10 |
| >1070 - 1080 | (OD8+) | D LB6 + IRM LB8 |
| >1080 - 1087 | (OD7+) | D LB6 + IRM LB7 |
| >1087 - 1096 | (OD6+) | DIRM LB6 |
| >1096 - 1105 | (OD5+) | DIRM LB5 |
| >1105 - 1113 | (OD4+) | DIRM LB4 |
| >1113 - 1125 | (OD3+) | DIRM LB3 |
| 5250 - 14000 | (OD5+) | DI LB4 + R LB3Y |
| 10600 - 10600 | (OD8+) | DI LB4 + R LB3Y |
Accessories

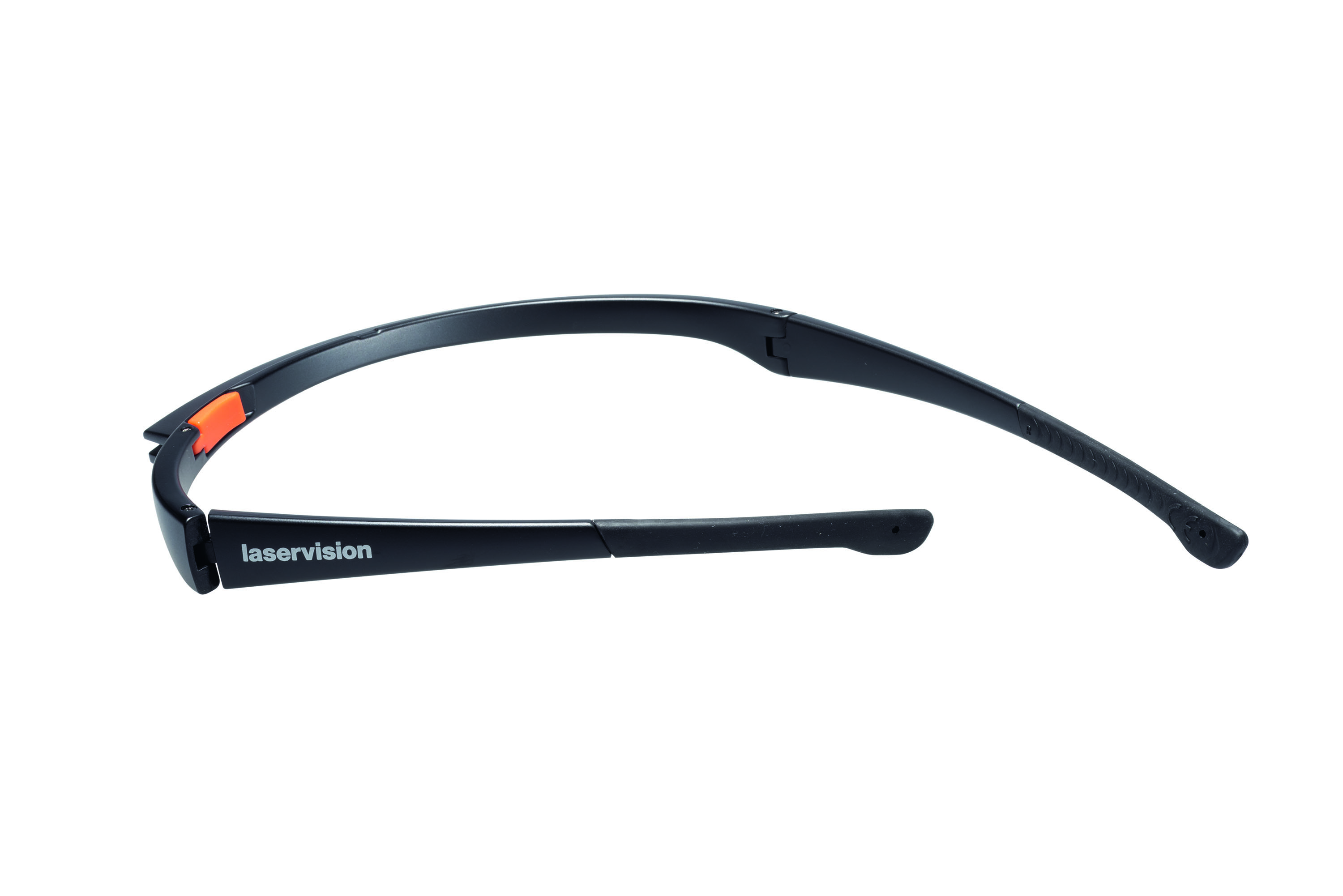

laser safety frame F42 / Set of 5
The lightweight laser protection mount A42 with quick-release and folding bracket is available as an accessory in a set of 5. Buy from laservision!

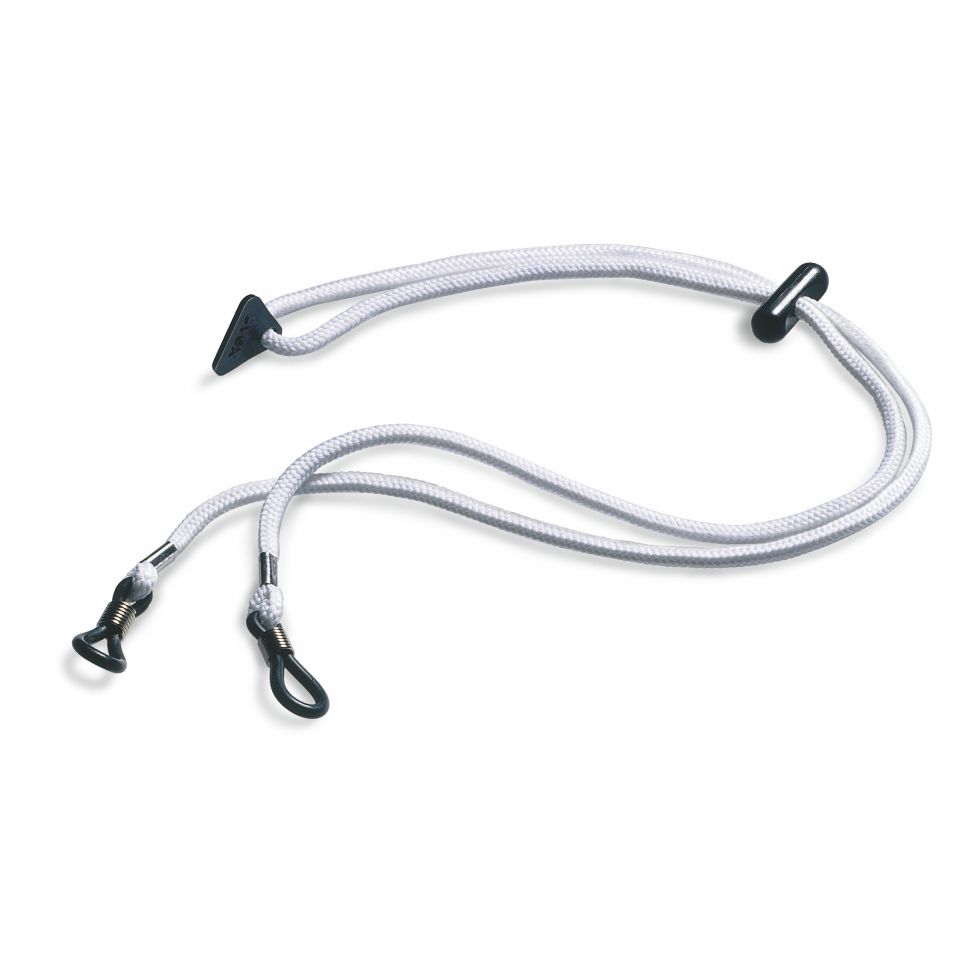

Spectacle cord without logo
The adjustable goggle cord is suitable for all glass and plastic laser safety glasses from laservision. Buy from laservision!

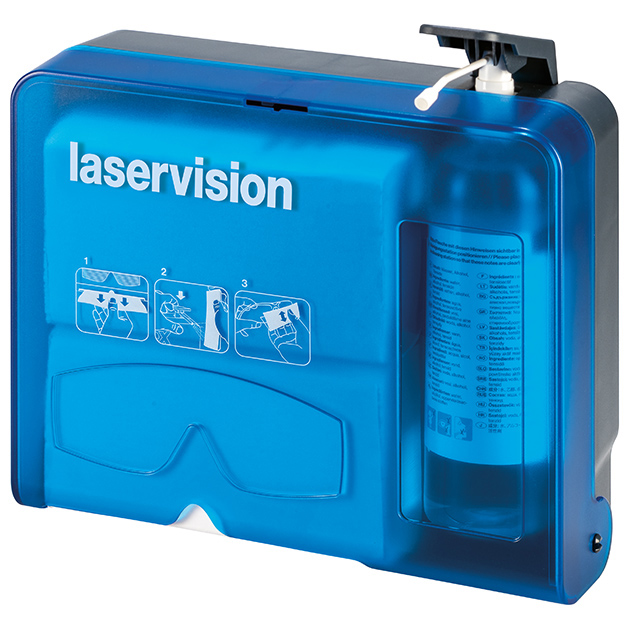

Cleaning station model 1300 with accessoires
The professional cleaning station A99CLSTA1300 for wall mounting finds a place in every room. Buy from laservision!
Other products in this category

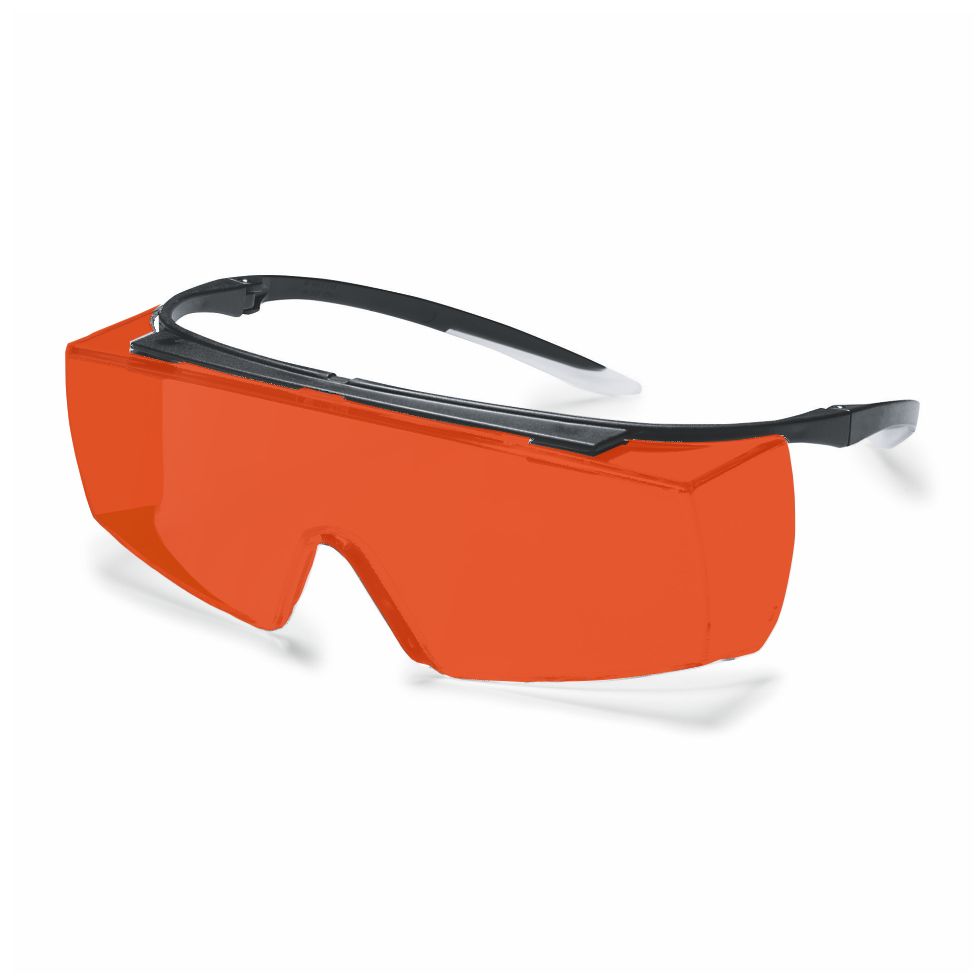

laser safety spectacle F22P1P17
Laser safety glasse F22P1P17 suitable for UV lasers, Nd:YAG, SHG, THG lasers. Buy from laservision!

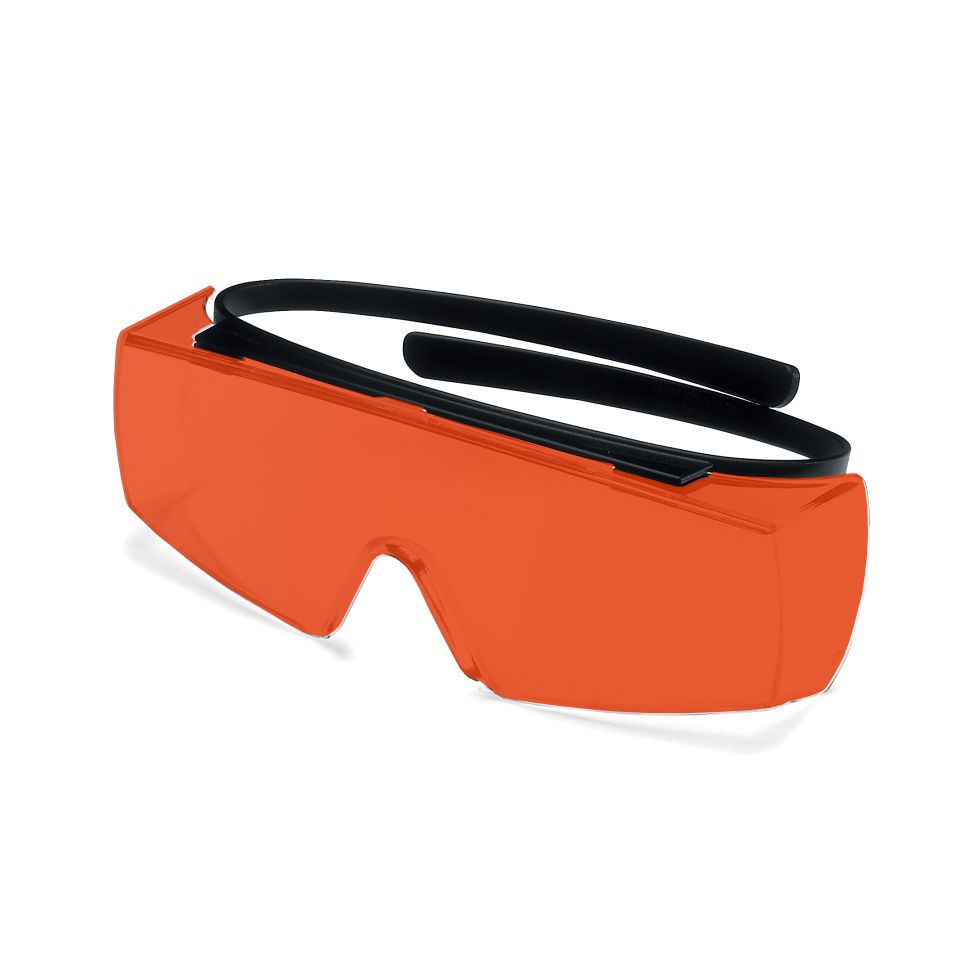

laser safety spectacle F18P1P17
