laser safety spectacle F22P1P17
The laser safety goggle F22.P1P17.1001 is particularly suitable for UV-, Nd: YAG, SHG, THG lasers and is ideal for high-energy pulsed lasers in the medical sector. It has M LB8 at 532nm and M LB8 at 1064nm. It can be worn as over-glasses on corrective lenses. The laser safety goggle has a daylight transmission of approx. 25% so that the subjective impression of the visual brightness is good. The eyewear comes in a sustainably produced hexagonal cardboard box, along with a microfiber pouch and a cord to hang the goggles on. For a professional cleaning of laser safety spectacles laservision recommends the cleaning station (A99.CLSTA.1300).
- Order number: F22P1P171001
- GTIN: 4050369049093
- Pack unit: 1 pieces
- Weight incl. packaging: 0,23 kg
- Weight excl. packaging: 0,04 kg
Product number:
F22P1P171001
Product information "laser safety spectacle F22P1P17"
Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
| Coating: | no coating |
|---|---|
| Cushion: | No cushion |
| Filter: | P1P17 |
| Filter colour: | Orange brown |
| Filter material: | Plastic |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 2mm |
| Frame: | F22 |
| Frame type: | OTG with temples |
| Properties: | Lightweight |
| Protection Class / Norm: | EN 207 full protection |
| Protection range: | Infrared, near infrared, ultraviolett, visible |
| VLT (approx.): | 25% |
| Visual brightness: | Good |
| colour recognition: | Limited |
| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 180 - 315 | (OD10+) | D LB10 + IR LB4 + M LB6Y |
| >315 - 532 | (OD10+) | D LB6 + IR LB8 + M LB10 |
| >532 - 535 | (OD8+) | D LB6 + IRM LB8 |
| >535 - 539 | (OD6+) | DIRM LB6 |
| >539 - 541 | (OD5+) | DIRM LB5 |
| >541 - 545 | (OD3+) | DIRM LB3 |
| 785 - <800 | (OD4+) | DIRM LB4 |
| 800 - <816 | (OD5+) | DIRM LB5 |
| 816 - <835 | (OD6+) | DIRM LB6 |
| 835 - <850 | (OD7+) | D LB6 + IRM LB7 |
| 850 - <880 | (OD8+) | D LB6 + IRM LB8 |
| 880 - 1070 | (OD10+) | D LB6 + IR LB8 + M LB10 |
| >1070 - 1080 | (OD8+) | D LB6 + IRM LB8 |
| >1080 - 1087 | (OD7+) | D LB6 + IRM LB7 |
| >1087 - 1096 | (OD6+) | DIRM LB6 |
| >1096 - 1105 | (OD5+) | DIRM LB5 |
| >1105 - 1113 | (OD4+) | DIRM LB4 |
| >1113 - 1125 | (OD3+) | DIRM LB3 |
| 5250 - 14000 | (OD5+) | DI LB4 + R LB3Y |
| 10600 - 10600 | (OD8+) | DI LB4 + R LB3Y |
Accessories

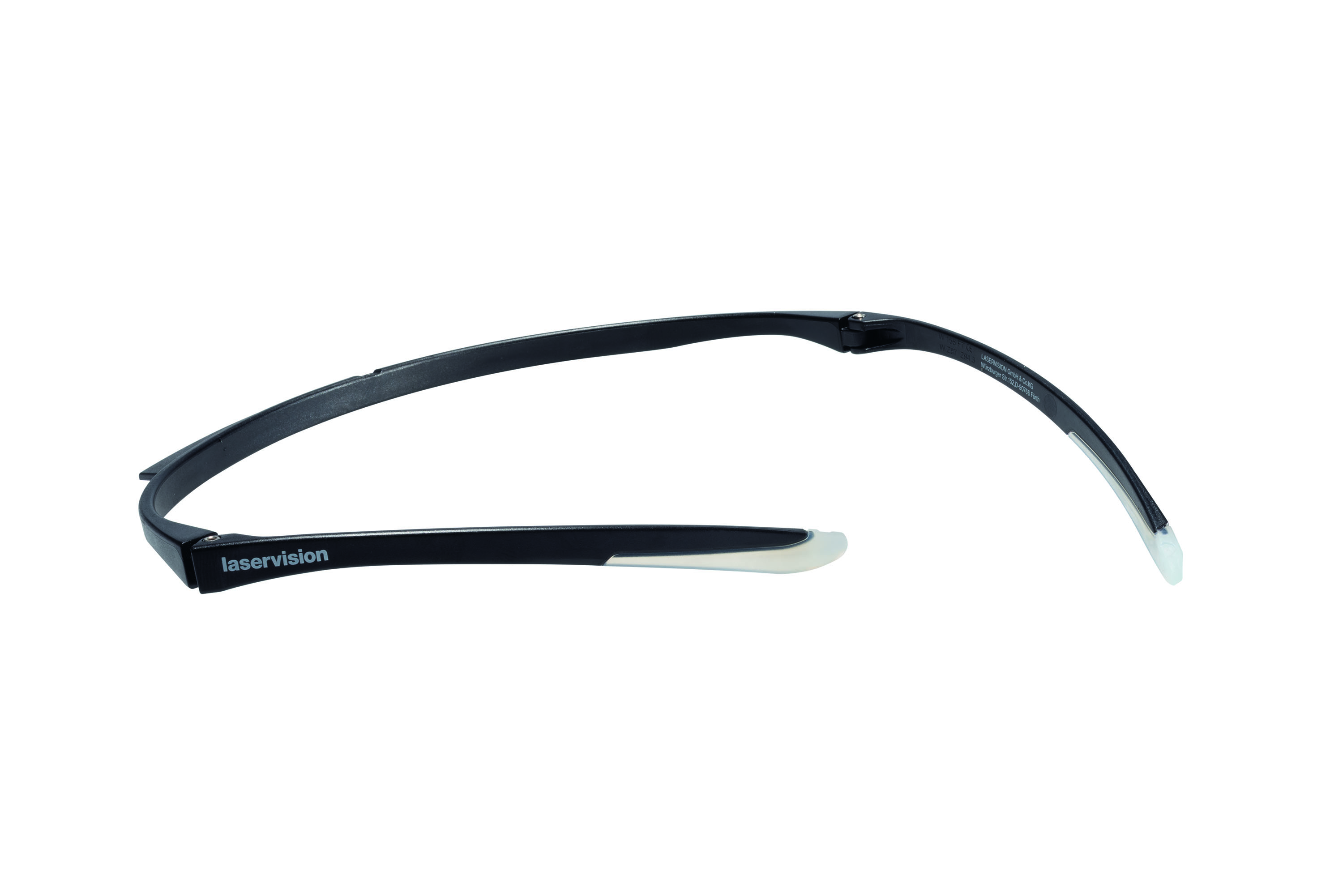

laser safety frame F22 / Set of 5
