laser safety magnifier F27P1L09 340mm
The laservision laser safety magnifier F27.P1L09.1231 with standard temples is suitable for medical lasers within the dermatological and dental area using UV, blue, Nd:YAG laser and lasers at a wevenlength 808nm.The laser safety magnifier F27 combines the proven OTG frame F22, supported by the new developed adapter, with a binocular magnifier HR2.5x/340mm from one of the leading German manufacturers. The standard magnification is 2,5 at a working distance of 340mm. laservision recommends the professional cleaning station (A99.CLSTA.1300) for cleaning the laser safety loupe.
- Order number: F27P1L091231
- GTIN: 4050369037830
- Pack unit: 1 pieces
- Weight incl. packaging: 0,59 kg
- Weight excl. packaging: 0,10 kg
Product number:
F27P1L091231
Product information "laser safety magnifier F27P1L09 340mm"
The laser safety magnifier F27.P1L09.1231 is suitable for UV, Blue, 808nm and Nd:YAG lasers. Therefore this filter is especially suitable for medical lasers within the higher ranges, which are used in the dermatology and detal area. When using binocular magnifiers in laser surgery, it is mandatory to take the increase of power or energy density into consideration. Only the combination of suitable laser safety filters in front of the loupe and a laser safety goggle is considered to be safe. The laser safety magnifier F27 combines the proven OTG frame F22, supported by the new developed adapter, with a binocular magnifier HR2.5x/340mm from one of the leading German manufacturers. The standard magnification is 2,5 at a working distance of 340mm. The filter P1L09, within the shield but also on the magnifier, features a goog visual transmission and colour view. The wavefront optimised uvex high-res shield offers a distortion-free imaging quality and fatigue-proof seeing. Especiall
Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
| Coating: | no coating |
|---|---|
| Cushion: | No cushion |
| Filter: | P1L09 |
| Filter colour: | Green |
| Filter curvature: | Flat filter |
| Filter material: | Plastic |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 2mm |
| Frame: | F27 |
| Frame type: | OTG with temples |
| Properties: | Lightweight, M-protection rating |
| Protection Class / Norm: | EN 207 full protection, EN 208 Alignment protection |
| Protection range: | near infrared, ultraviolett, visible |
| VLT (approx.): | 35% |
| Visual brightness: | Good |
| colour recognition: | Good |
| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 180 - 315 | (OD9+) | D LB9 + IR LB4 + M LB6 |
| >315 - 450 | (OD5+) | DIRM LB5 |
| >450 - 460 | (OD3+) | DIRM LB3 |
| 690 - 700 | (OD2-3+) | 0,1W 2x10E-5J RB2 |
| 690 - <725 | (OD2+) | DIRM LB2 |
| 725 - <745 | (OD3+) | DIRM LB3 |
| 745 - <760 | (OD4+) | DIRM LB4 |
| 760 - <775 | (OD5+) | DIRM LB5 |
| 775 - <790 | (OD6+) | DIRM LB6 |
| 790 - <810 | (OD7+) | D LB6 + IRM LB7 |
| 810 - 1090 | (OD8+) | D LB6 + I LB8 + R LB7 + M LB8Y |
| >1090 - 1100 | (OD7+) | D LB6 + IRM LB7 |
| >1100 - 1110 | (OD6+) | DIRM LB6 |
| >1110 - 1120 | (OD5+) | DIRM LB5 |
Accessories
HEINE LoupeLight2 A27LEDLU1000
HEINE LoupeLight 2: Absolutely homogeneous, bright light, has optimal color rendering as well as shadow-free illumination. Buy from laservision!
Cleaning station model 1300 with accessoires
The professional cleaning station A99CLSTA1300 for wall mounting finds a place in every room. Buy from laservision!
Other products in this category

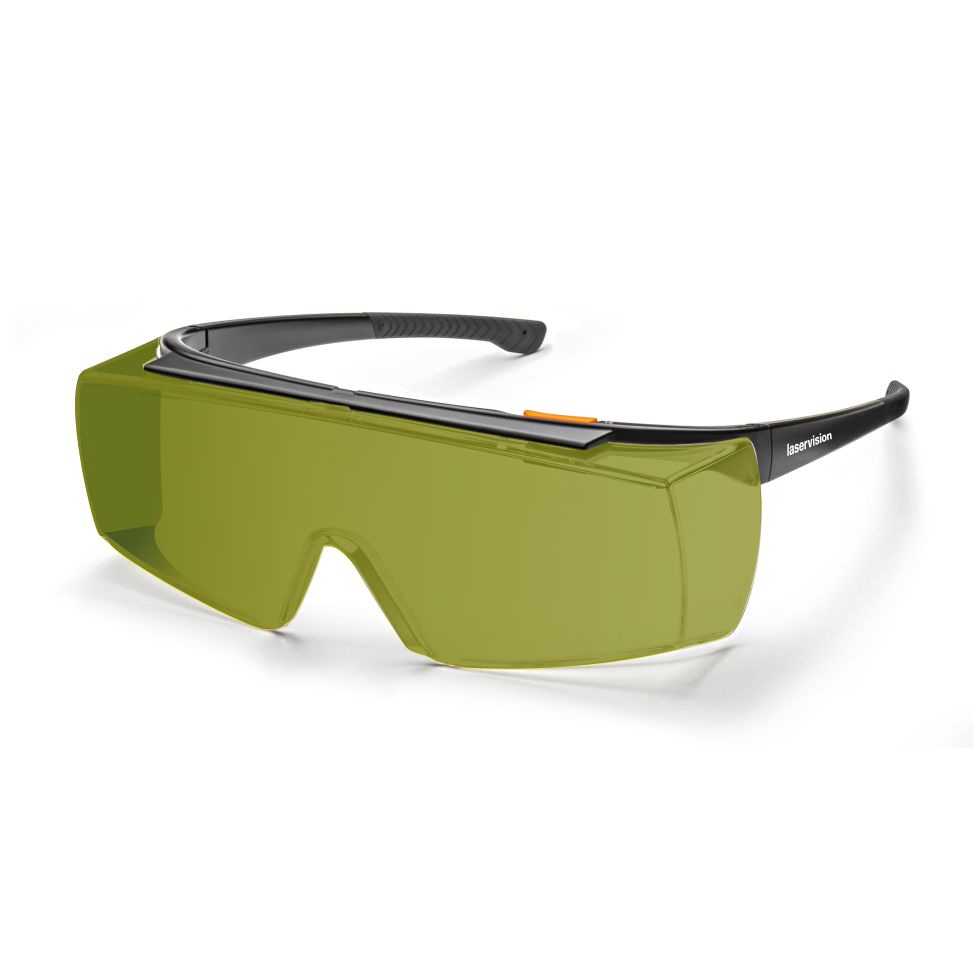

laser safety spectacle F42P1L09
