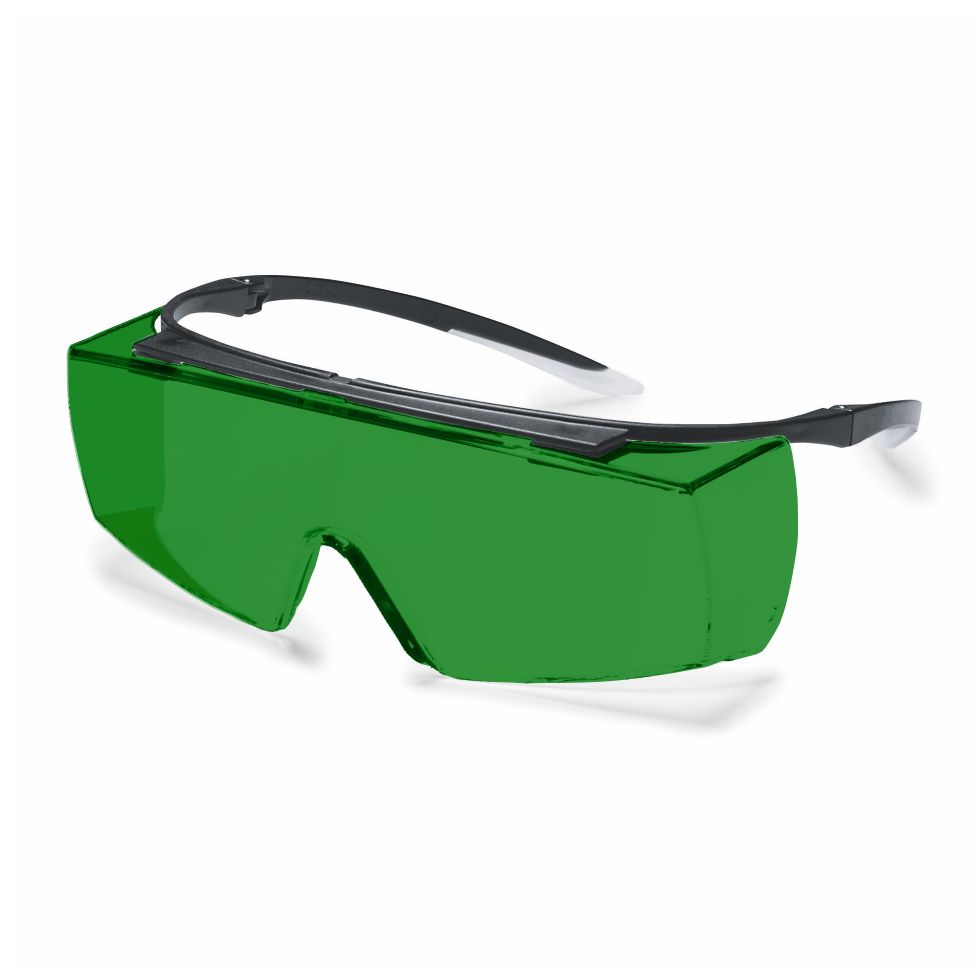

laser safety spectacle F22P1H02
The laser safety goggle F22.P1H02.1001 is especially suitable for red and IR laser diodes. Within this wavelength range the goggle has a full protection level acc. EN 207 and alignment protection acc. EN 208. The shipment adds a softcase together with a cord to hang it around the neck. For a professional cleaning of laser safety spectacles laservision recommends the cleaning station (A99.CLSTA.1300).
- Order number: F22P1H021001
- GTIN: 4050369017078
- Pack unit: 1 pieces
- Weight incl. packaging: 0,23 kg
- Weight excl. packaging: 0,04 kg
Product number:
F22P1H021001
Product information "laser safety spectacle F22P1H02"
Protection range
visible
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
| Coating: | no coating |
|---|---|
| Cushion: | No cushion |

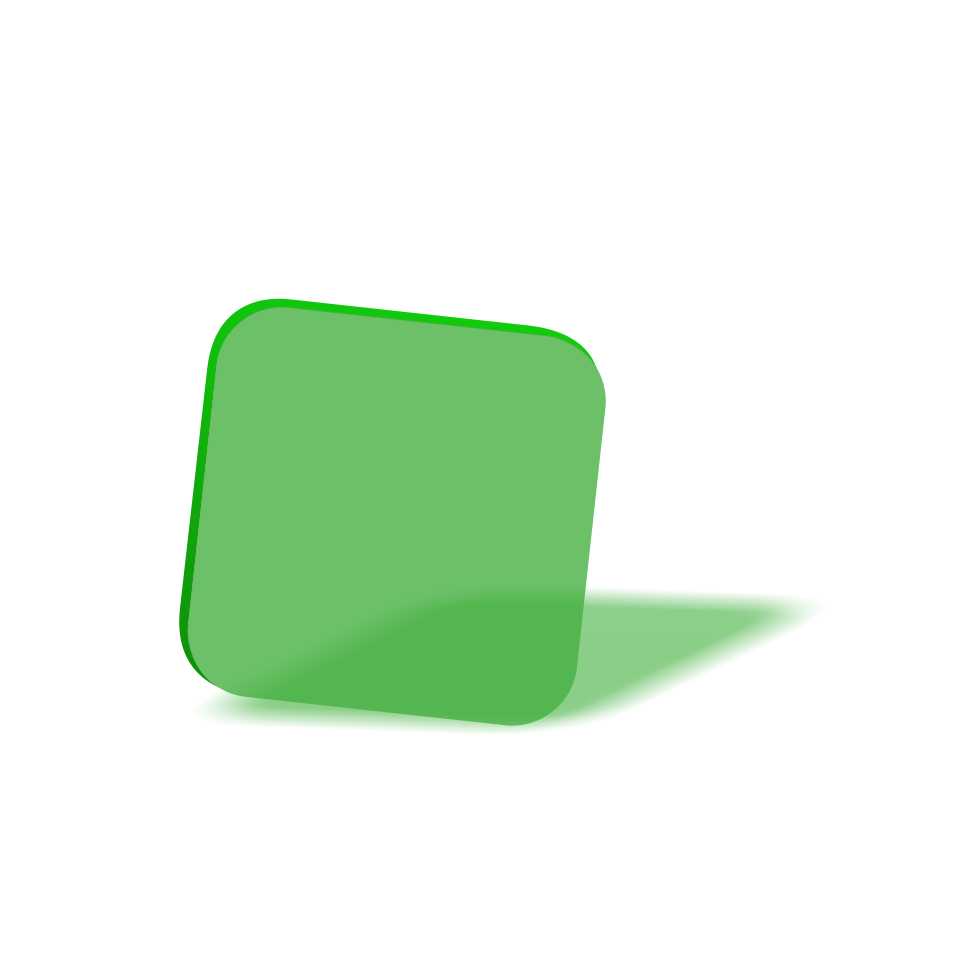

| Filter: | P1H02 |
| Filter colour: | Light green |
| Filter material: | Plastic |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 2mm |
| Frame: | F22 |
| Frame type: | OTG with temples |
| Properties: | Lightweight |
| Protection Class / Norm: | EN 207 full protection, EN 208 Alignment protection |
| Protection range: | near infrared, visible |
| VLT (approx.): | 42% |
| Visual brightness: | Good |

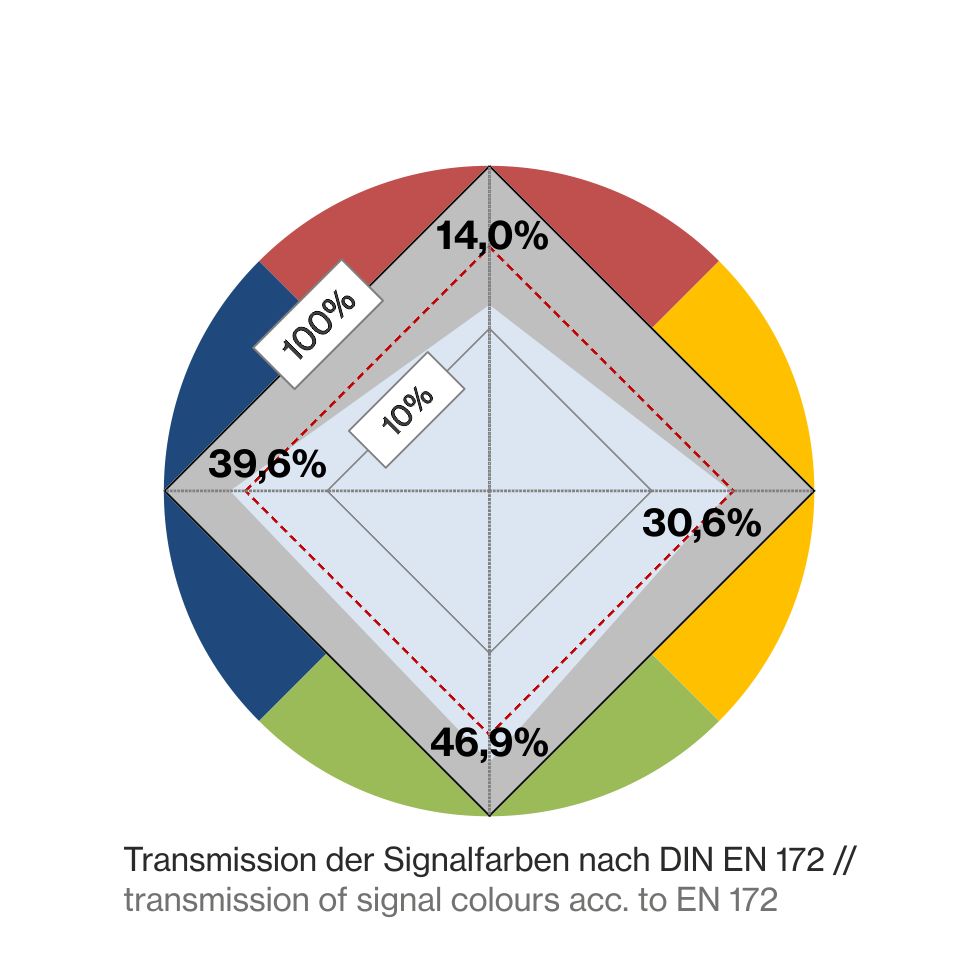

| colour recognition: | Good |

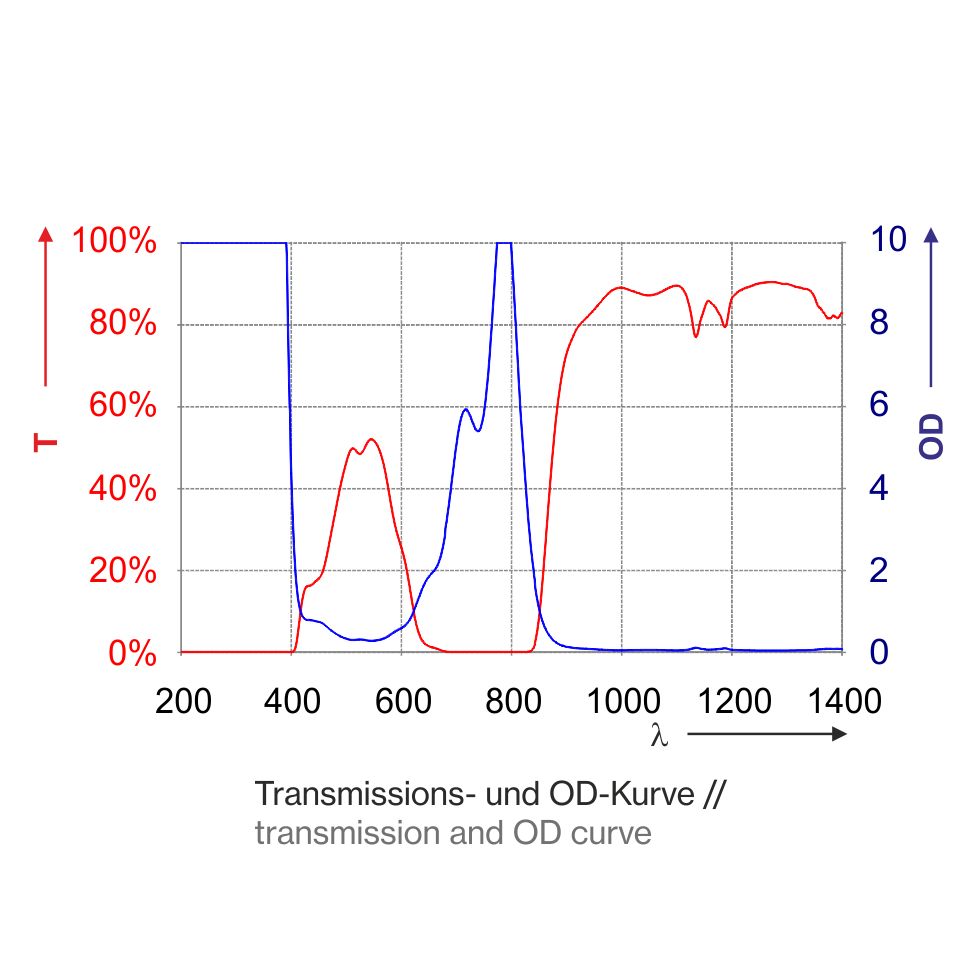

| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 625 - <660 | (OD1-2+) | 0,01W 2x10E-6J RB1 |
| 660 - 675 | (OD2-3+) | 0,1W 2x10E-5J RB2 |
| 660 - <682 | (OD2+) | DIRM LB2 |
| 682 - <692 | (OD3+) | DIRM LB3 |
| 692 - <700 | (OD4+) | DIRM LB4 |
| 700 - <755 | (OD5+) | DIRM LB5 |
| 755 - <760 | (OD6+) | DIRM LB6 |
| 760 - 810 | (OD7+) | D LB6 + IR LB7 + M LB7Y |
| >810 - 820 | (OD5+) | DIRM LB5 |
Accessories
laser safety frame F22 / Set of 5
The lightweight laser protection mount A22FASSU1LV1 with standard folding bracket is available in a set of 5. Buy from laservision!
Spectacle cord without logo
The adjustable goggle cord is suitable for all glass and plastic laser safety glasses from laservision. Buy from laservision!
Cleaning station model 1300 with accessoires
The professional cleaning station A99CLSTA1300 for wall mounting finds a place in every room. Buy from laservision!
Other products in this category
laser safety magnifier F27P1H02 340mm
Binocular laser safety magnifier F27P1H02 suitable for red and 808nm laser diodes. Buy from laservision!

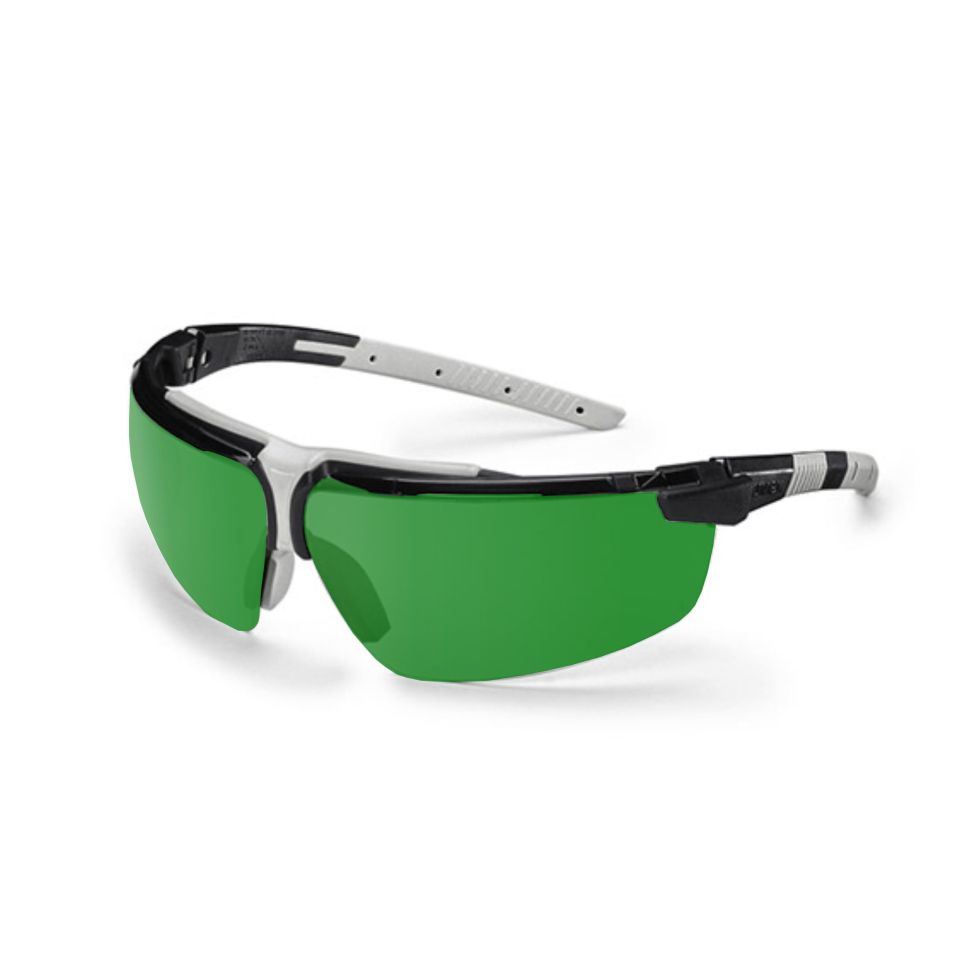

laser safety spectacle F29P1H02
Sporty laser safety goggle F29P1H02 suitable for red and IR laser diodes at 808nm. Buy from laservision!

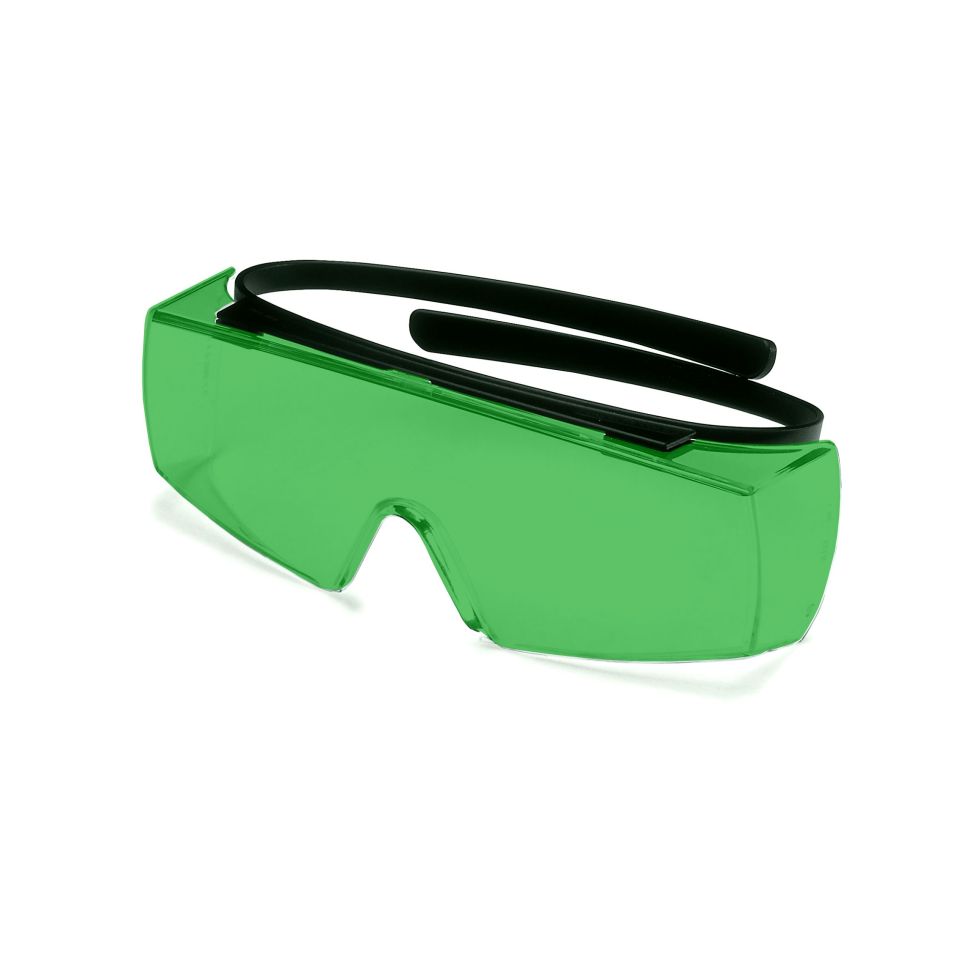

laser safety spectacle F18P1H02
Laser safety goggle F18P1H02 - especially suitable for red and IR laser diodes at 808nm. Buy from laservision!

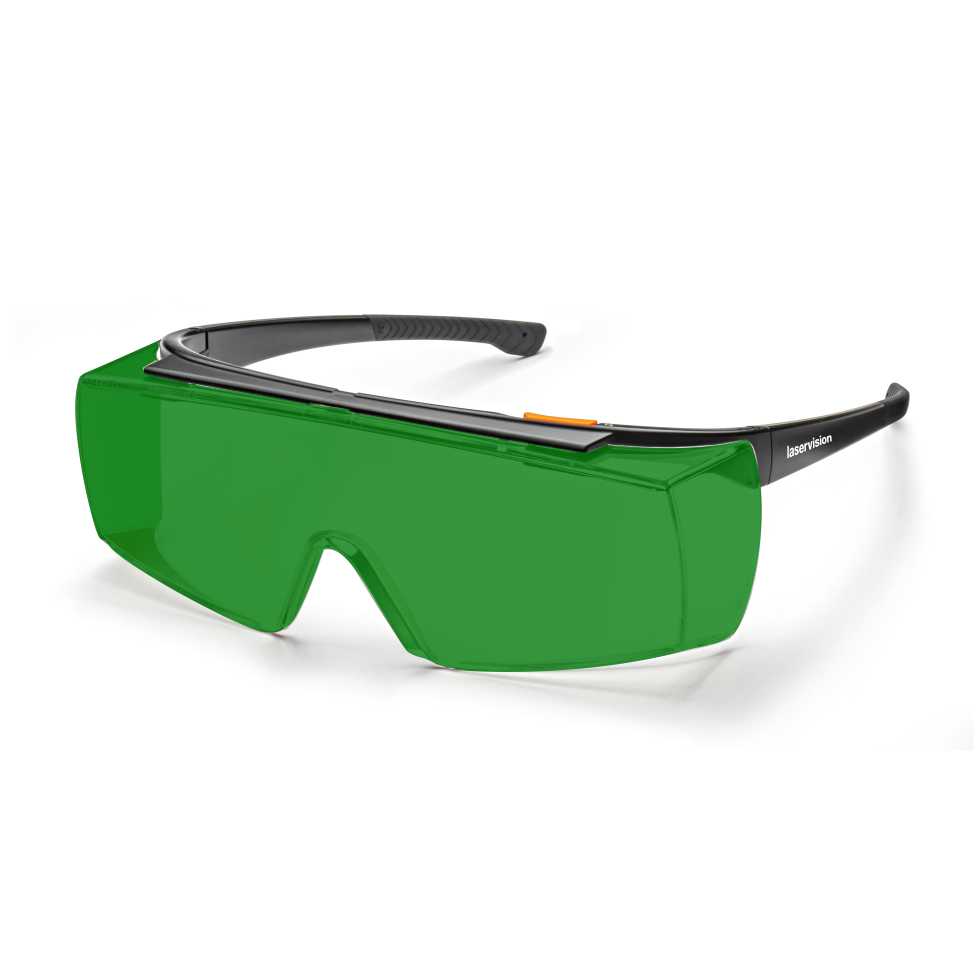

laser safety spectacle F42P1H02
