laser safety spectacle F20P1D01
The laservision laser safety spectacle F20.P1D01.1001 with colorless filter and has high protection levels in the UV range as well as a D LB5 protection level for CO2 lasers. The daylight transmission (VLT) is 90% and the visual brightness and color vision are excellent. These laser safety goggle impress with a very good field of vision and a comfortable fit. The eyewear comes in a sustainably produced hexagonal cardboard box, along with a microfiber pouch and a cord to hang the goggles on. We recommend the laservision cleaning station for cleaning the laser safety goggle (A99.CLSTA.1300).
- Order number: F20P1D011001
- GTIN: 4050369072138
- Pack unit: 1 pieces
- Weight incl. packaging: 0,27 kg
- Weight excl. packaging: 0,03 kg
Product number:
F20P1D011001
Product information "laser safety spectacle F20P1D01"
Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
Infrared
Protection in the infrared spectral range above 1400nm
| Coating: | no coating |
|---|---|
| Filter: | P1D01 |
| Filter colour: | Colourless |
| Filter material: | Plastic |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 5mm |
| Frame: | F20 |
| Frame type: | Spectacle |
| Properties: | Lightweight, individually packed |
| Protection Class / Norm: | EN 207 full protection |
| Protection range: | Infrared, ultraviolett, visible |
| VLT (approx.): | 90% |
| Visual brightness: | Excellent |
| colour recognition: | Excellent |

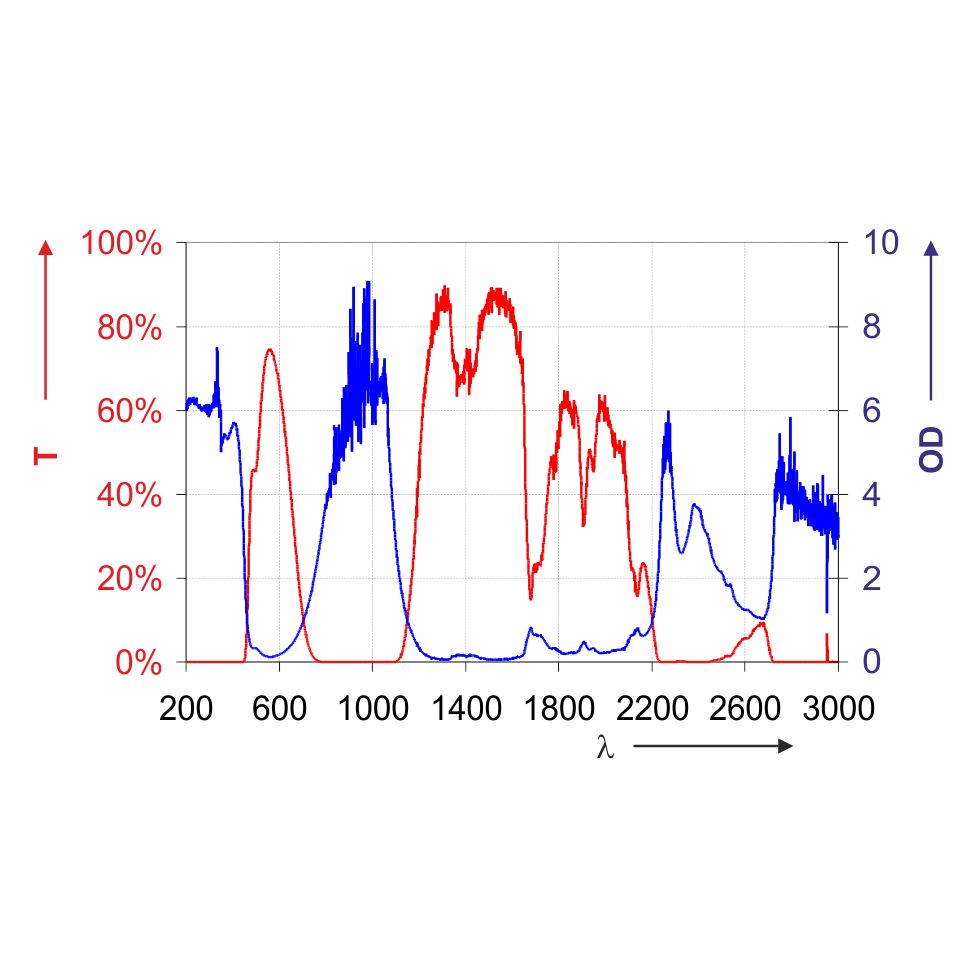

| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 180 - 315 | (OD10+) | D LB10 + IR LB4 + M LB6Y |
| >315 - 367 | (OD8+) | D LB6 + IR LB8 + M LB7Y |
| >367 - 369 | (OD7+) | D LB6 + IR LB7 + M LB7Y |
| >369 - 371 | (OD6+) | DIRM LB6 |
| >371 - 373 | (OD5+) | DIRM LB5 |
| >373 - 375 | (OD4+) | DIRM LB4 |
| >375 - 377 | (OD3+) | DIRM LB3 |
| >377 - 380 | (OD2+) | DIRM LB2 |
| >380 - 384 | (OD1+) | DIRM LB1 |
| 3950 - <4700 | (OD4+) | DIM LB4 + R LB3Y |
| 4700 - <4765 | (OD5+) | DIM LB5 + R LB3Y |
| 4765 - <5200 | (OD8+) | DI LB5 + R LB3Y + M LB6Y |
| 5200 - 14500 | (OD10+) | DI LB5 + R LB3Y + M LB6Y |
| >14500 - 25000 | (OD6+) | DI LB5 + R LB3Y + M LB6Y |
