laser safety goggle R14P1D01F

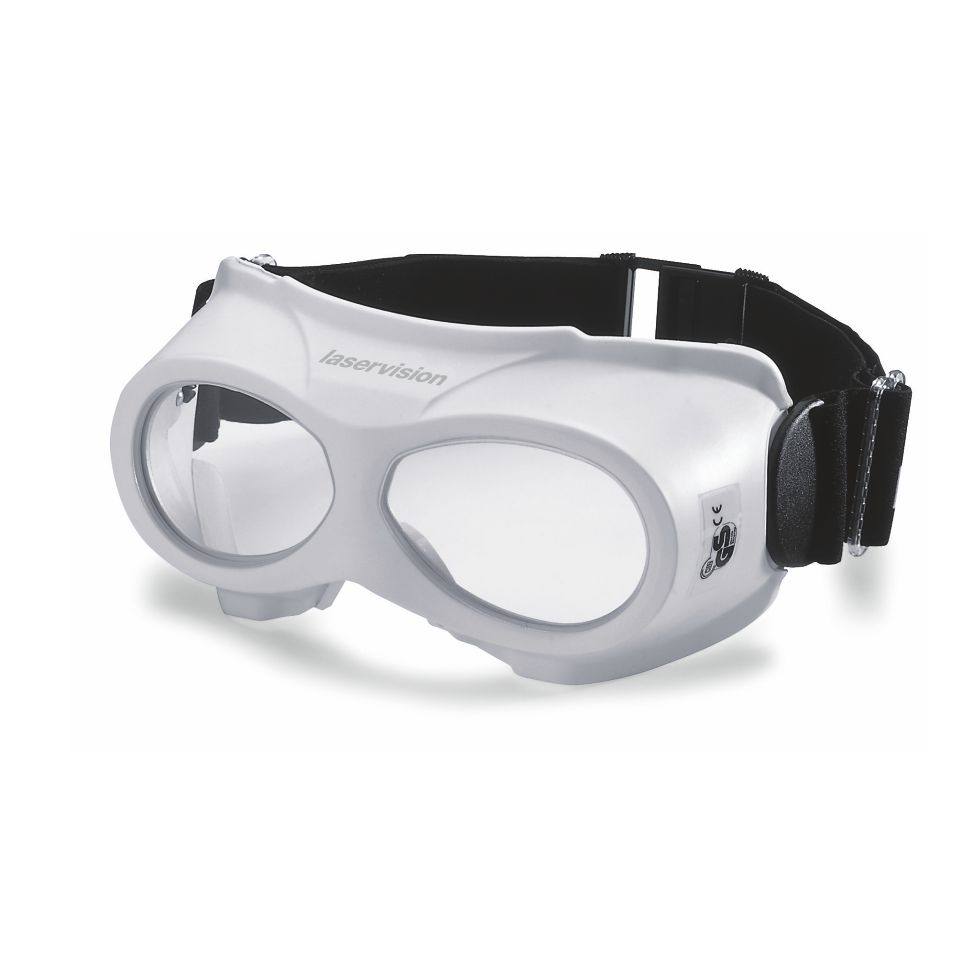

The laservision laser safety eyewear R14.P1D01.1002 is a goggle with colorless laser safety filters P1D01 and high protection levels in the UV range and a D LB5 protection level for CO2 lasers. The Daylight Transmission (VLT) is 90% and the visual brightness and color vision are excellent. The changeable click frame with a foam frame (F) ensures a very good wearing comfort. It can also be combined with a carry basket from laservision (A14HSUPS1000). The delivery takes place in a metal box, which can also be used for storage. The removable frame can optionally be purchased in sets of 5.
- Order number: R14P1D011002
- GTIN: 4050369019294
- Pack unit: 1 pieces
- Weight incl. packaging: 0,74 kg
- Weight excl. packaging: 0,31 kg
Product number:
R14P1D011002
Product information "laser safety goggle R14P1D01F"
Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
Infrared
Protection in the infrared spectral range above 1400nm
| Coating: | no coating |
|---|---|
| Cushion: | Soft foam (F) |

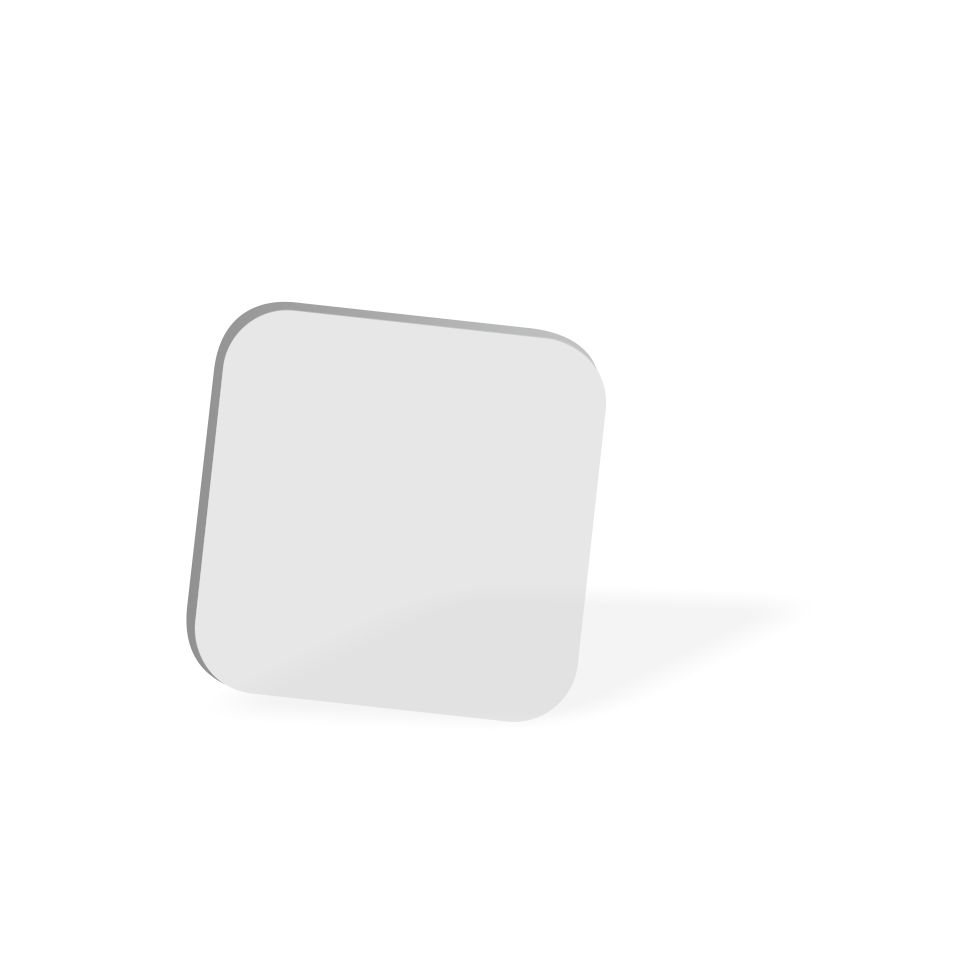

| Filter: | P1D01 |
| Filter colour: | Colourless |
| Filter curvature: | Flat filter |
| Filter material: | Plastic |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 6mm |
| Frame: | R14 |
| Frame type: | Goggle with strap |
| Protection Class / Norm: | EN 207 full protection |
| Protection range: | Infrared, ultraviolett, visible |
| VLT (approx.): | 90% |
| Visual brightness: | Excellent |

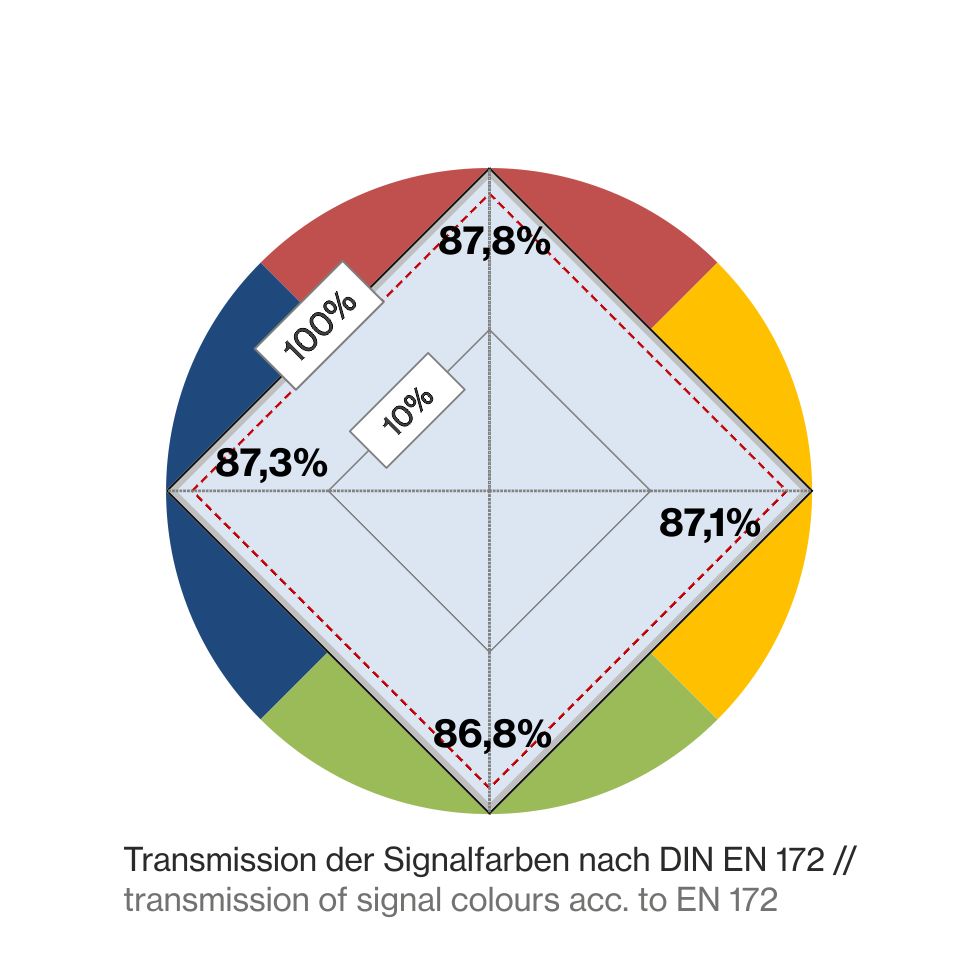

| colour recognition: | Excellent |
| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 180 - 315 | (OD10+) | D LB10 + IR LB4 + M LB6Y |
| >315 - 367 | (OD8+) | D LB6 + IR LB8 + M LB7Y |
| >367 - 369 | (OD7+) | D LB6 + IR LB7 + M LB7Y |
| >369 - 371 | (OD6+) | DIRM LB6 |
| >371 - 373 | (OD5+) | DIRM LB5 |
| >373 - 375 | (OD4+) | DIRM LB4 |
| >375 - 377 | (OD3+) | DIRM LB3 |
| >377 - 380 | (OD2+) | DIRM LB2 |
| >380 - 384 | (OD1+) | DIRM LB1 |
| 3950 - <4700 | (OD4+) | DIM LB4 + R LB3Y |
| 4700 - <4765 | (OD5+) | DM LB5 + I LB5Y + R LB3Y |
| 4765 - 25000 | (OD6+) | D LB5 + I LB5Y + R LB3Y + M LB6Y |
