laser safety spectacle R01T2K05
The laser safety goggle R01.T2K05.1001 offers a broadband laser protection within the NIR and IR-range (850-11500nm). The full protection spectacle can be combined with an RX-insert. The small, reinforced spectacle with adjustable temples and light grey filter’s, is characterized for its light weight and a good field of view. The shipment includes a spectacle cord and metal box, which can also be used as its storage box.
- Order number: R01T2K051001
- GTIN: 4050369012127
- Pack unit: 1 pieces
- Weight incl. packaging: 0,40 kg
- Weight excl. packaging: 0,06 kg
Product number:
R01T2K051001
Product information "laser safety spectacle R01T2K05"
Protection range
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
| Coating: | no coating |
|---|---|
| Cushion: | No cushion |
| Filter: | T2K05 |
| Filter colour: | Light grey |
| Filter curvature: | Flat filter |
| Filter material: | Mineral glass |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 3-4mm |
| Frame: | R01 |
| Frame type: | Spectacle with Rx insert option |
| Properties: | Adjustable temples, No neutral glass lamination |
| Protection Class / Norm: | EN 207 full protection |
| Protection range: | Infrared, near infrared |
| VLT (approx.): | 75% |
| Visual brightness: | Very good |
| colour recognition: | Excellent |
| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 850 - 900 | (OD2+) | DIRM LB2 |
| >900 - 950 | (OD3+) | DIRM LB3 |
| >950 - 1030 | (OD4+) | DIRM LB4 |
| >1030 - 1400 | (OD5+) | DIRM LB5 |
| >1400 - 2200 | (OD4+) | DIM LB4 + R LB3Y |
| 2400 - 2800 | (OD3+) | DIM LB3 + R LB3Y |
| >2800 - 25000 | (OD4+) | DIM LB4 + R LB3Y |
Accessories

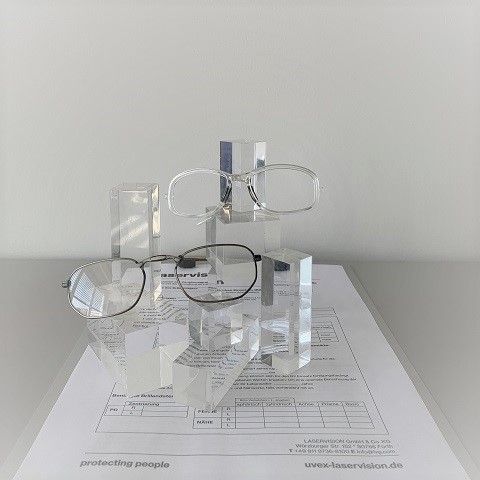

RX insert for R01 and R17 - glazing service
In-house glazing service for RX insert from laservision, suitable for R01 and R17. Learn more!

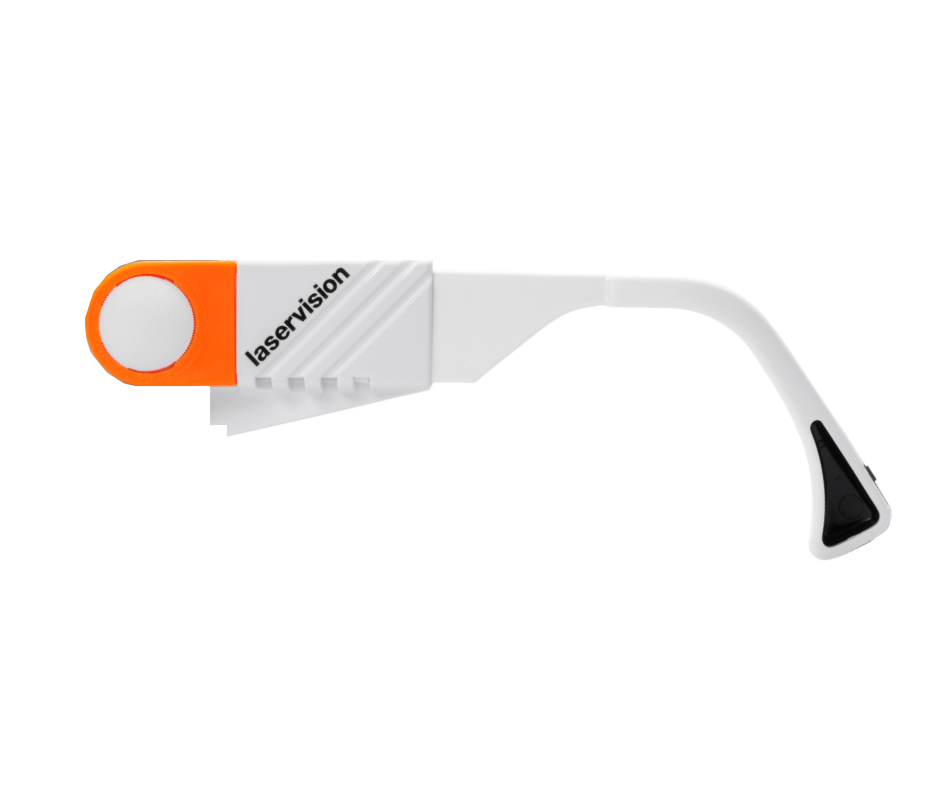

Duoflex-Temples for R01, R02, R10 and R17/ Set of 5
Replacement set Duoflex temples extends the life of your laser safety eyewear from laservision. Easy replacement. Buy from laservision!
Cleaning station model 1300 with accessoires
The professional cleaning station A99CLSTA1300 for wall mounting finds a place in every room. Buy from laservision!

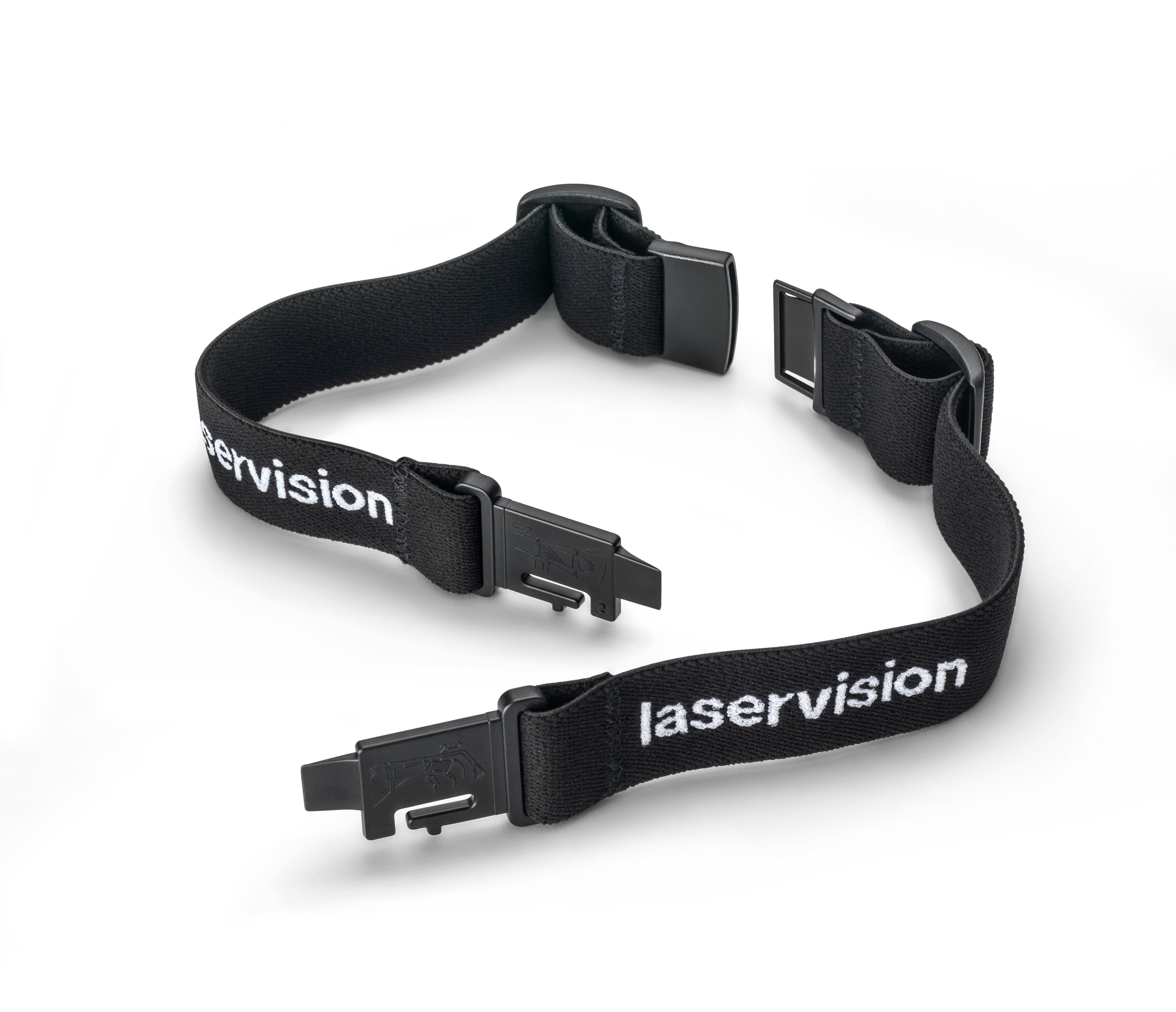

Head strap
Flexible headband as an alternative to the Duoflex temples on the R01, R02, R10 and R17 laser safety frames. Buy from laservision!

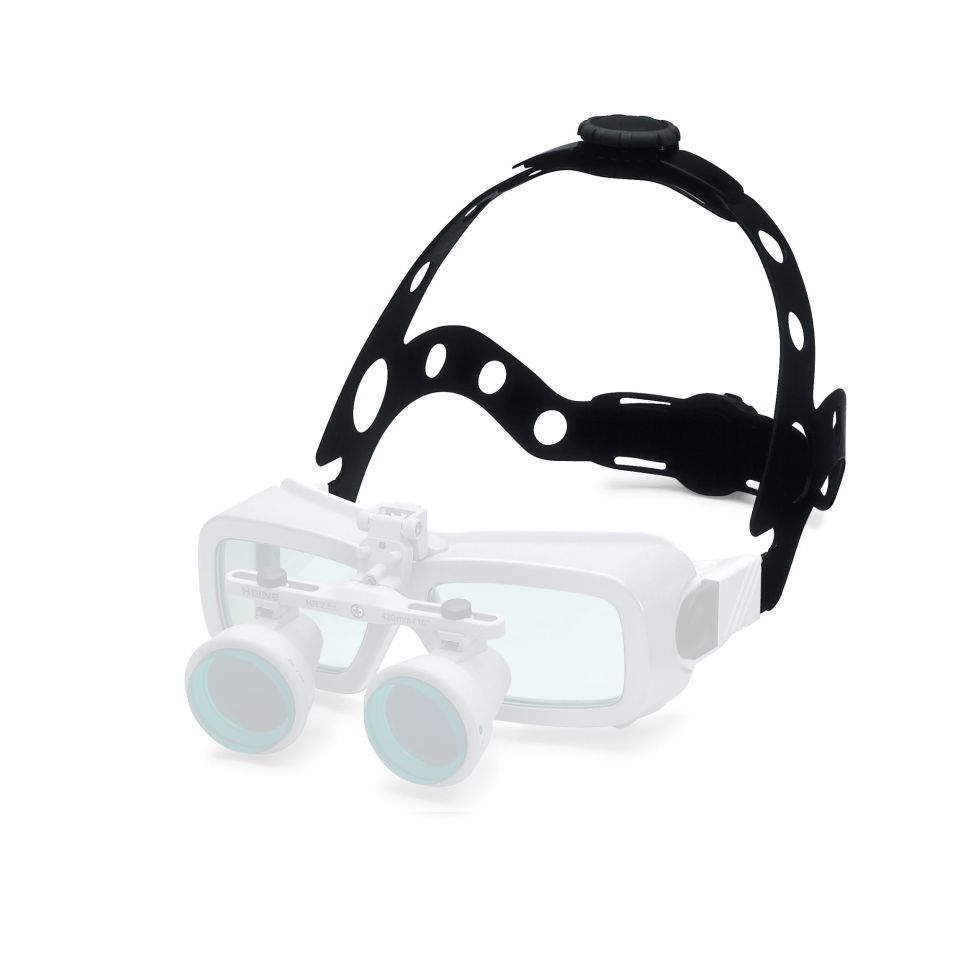

Head support system for frame R01/R02/R10/R17/X46
Carrying basket for R01, R02, R10, R17 and X46 laser safety goggles for higher wearing comfort with thick and heavy glass filters. Buy from laservision!

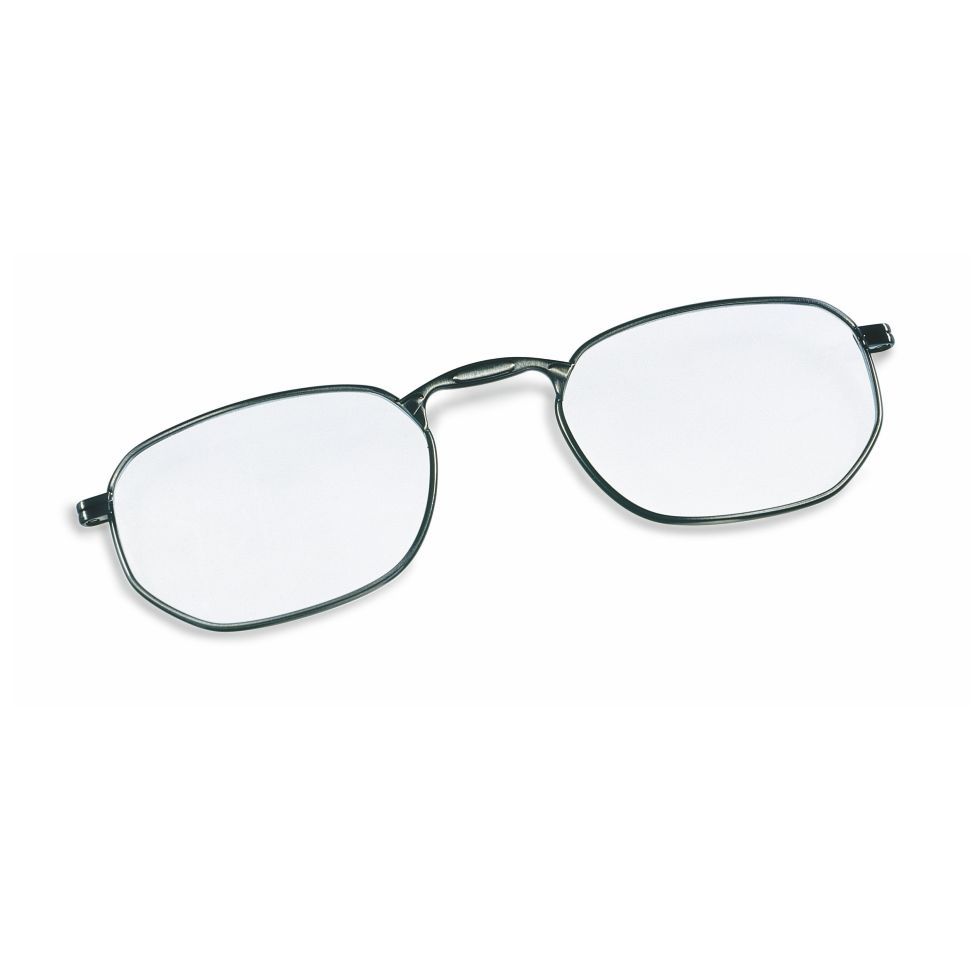

RX insert for laser safety frames R01 and R17
