laser safety spectacle R14T2K02A

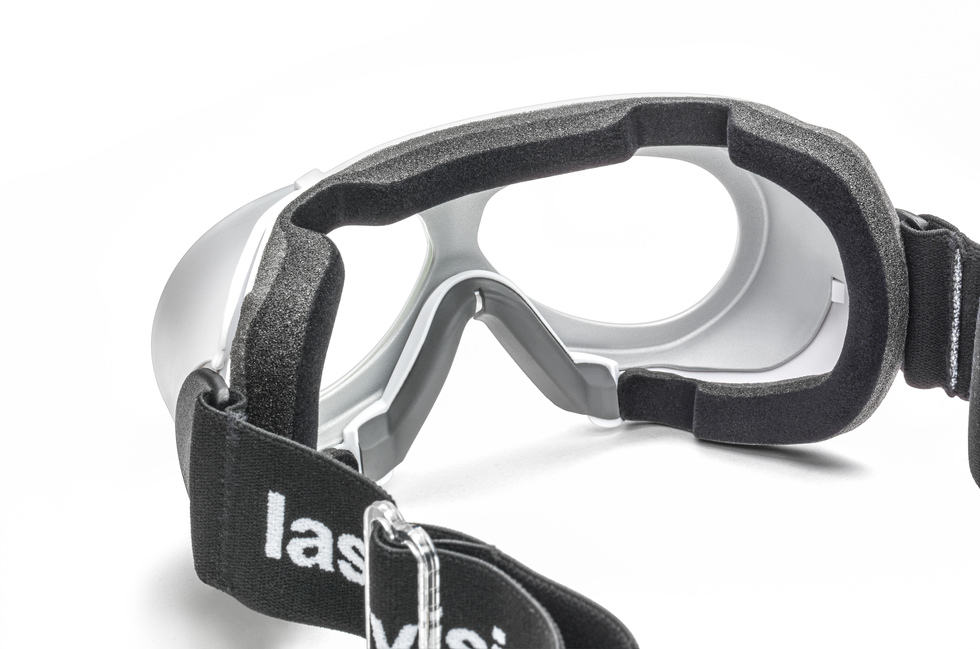

The laservision laser safety goggle R14.T2K02.1004 with an aired foam frame (A), provides a broad band protection effect within the NIR and IR- spectral area (850-11,500nm). The OTG goggle with light grey filters without lamination can be worn over average large correction glasses. The changeable click frame with an aired foam (A14AIRED1000) makes the goggles particularly comfortable to wear and prevents fogging of the laser protection filters. A clear view is guaranteed even with a long wearing period. The shipment includes a metal box which can also be used as a storage box. The removable frame can optionally be bought in sets of 5.
- Order number: R14T2K021004
- GTIN: 4050369051997
- Pack unit: 1 pieces
- Weight incl. packaging: 0,64 kg
- Weight excl. packaging: 0,20 kg
Product number:
R14T2K021004
Product information "laser safety spectacle R14T2K02A"
Protection range
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
| Coating: | no coating |
|---|---|
| Cushion: | Aired foam (A) |
| Filter: | T2K02 |
| Filter colour: | Light grey |
| Filter curvature: | Flat filter |
| Filter material: | Mineral glass |
| Filter technology: | Absorption filter |
| Filter thickness: | ca. 4-5mm |
| Frame: | R14 |
| Frame type: | Goggle with strap |
| Properties: | No neutral glass lamination |
| Protection Class / Norm: | EN 207 full protection |
| Protection range: | Infrared, near infrared |
| VLT (approx.): | 70% |
| Visual brightness: | Very good |
| colour recognition: | Excellent |
| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 850 - 900 | (OD3+) | DIRM LB3 |
| >900 - 950 | (OD4+) | DIRM LB4 |
| >950 - <980 | (OD5+) | DIRM LB5 |
| 980 - <1030 | (OD7+) | D LB6 + IR LB7 + M LB7Y |
| 1030 - 1400 | (OD8+) | D LB6 + IR LB8 + M LB8Y |
| >1400 - 11500 | (OD4+) | DIR LB4 |
Accessories
Swiss Air PAPR
Swiss Air PAPR complete respiratory protection system incl. control panel, mask and filter. Buy from laservision!
Cleaning station model 1300 with accessoires
The professional cleaning station A99CLSTA1300 for wall mounting finds a place in every room. Buy from laservision!
Head strap with logo for R14
Elastic headband A14STRAP1LV0 for the R14 frame, adjustable, with clip closure and side attachment. Buy from laservision!
Cushion frame with lip seal
The cushion frame with sealing lip (A14LIPSE1000) for the laser safety spectacle frame R14 is particularly easy to clean. Buy from laservision!
Mouth-nose Mask for Swiss Air PAPR
Replacement black mouth-nose mask for the Swiss Air Respirator. Buy from laservision!
Head support system for frame R14
For the laser safety goggles R14, the carrying basket offers a significantly higher wearing comfort for thick and heavy glass filters. Buy from laservision!
Cushion frame with foam
The soft foam - cushion frame for the laser safety spectacle frame R14 (A14FORUB1000) for particularly high wearing comfort. Buy from laservision!
Particle Pre-Filters for Swiss Air Respirator
Set of 50 pre-filters for the Swiss Air PAPR (powered air-purifying respirator) system. Buy from laservision!
Anti fog - R14 insert
Special plastic lens to prevent fogging in extreme humidity or high temperature for R14 socket. Buy from laservision!
Chest protector made of leather (long)
Chest protector made of leather (long) compatible with Panoramaxx and FS1. Buy from laservision!

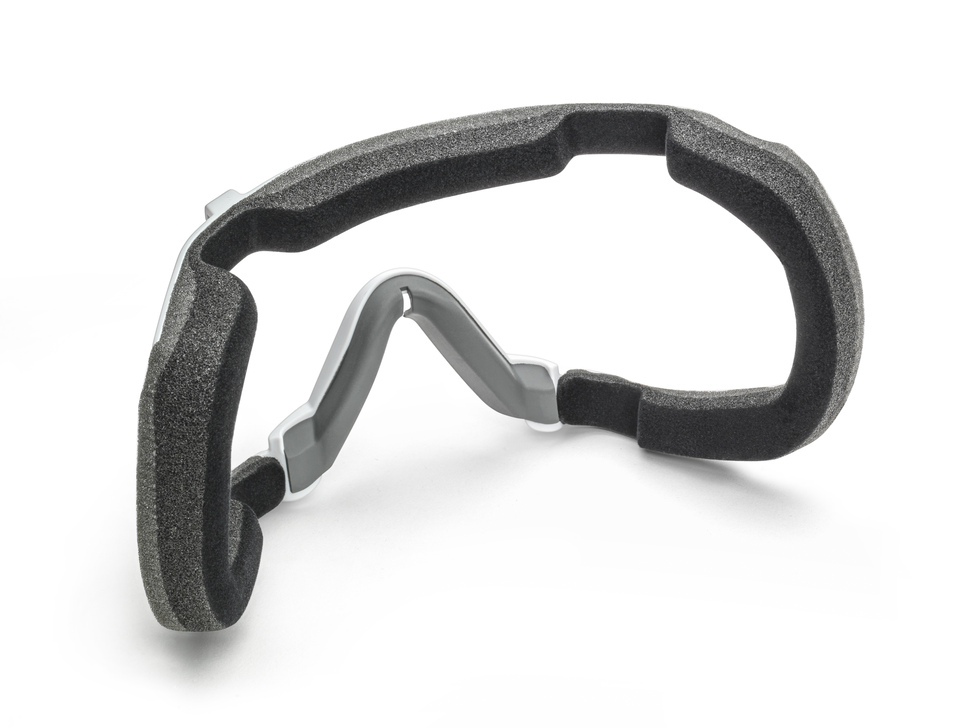

Cushion frame with vented foam
