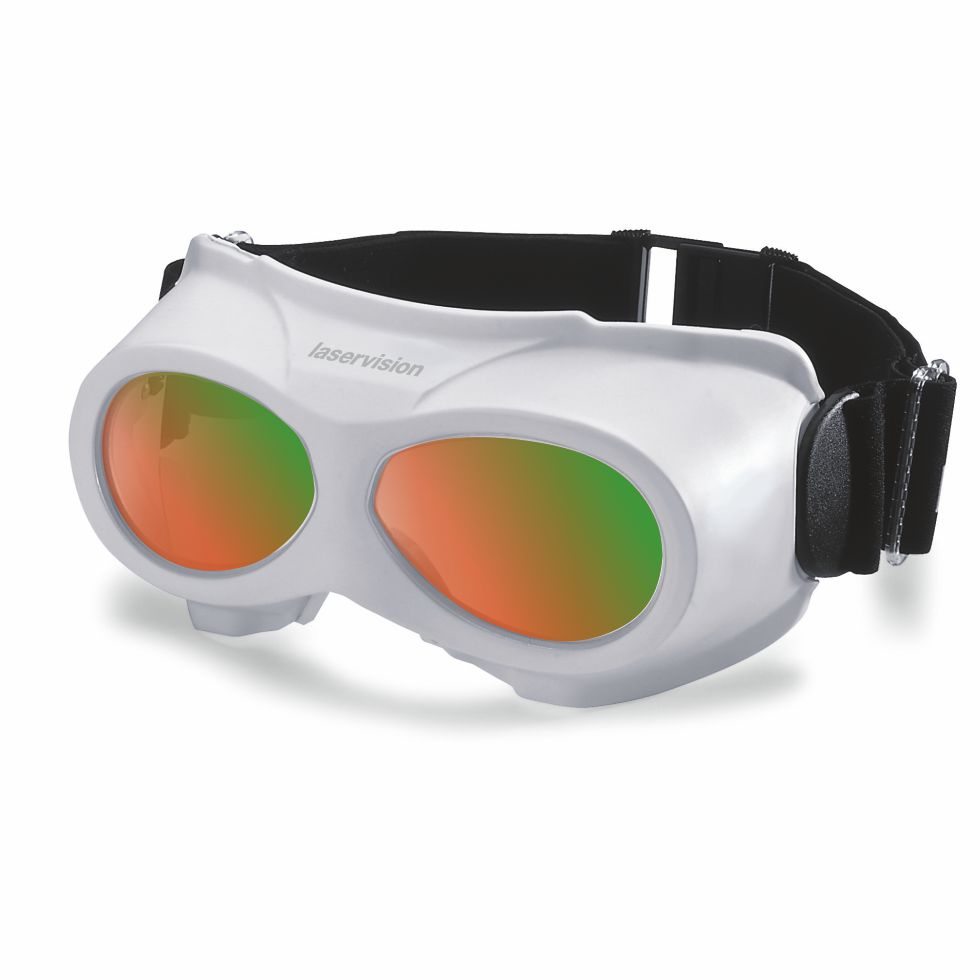

laser safety spectacle R14T1P07L
The laser safety eyewear R14.T1P07.1003 with lip seal frame (L) provides an extremely broadband laser protection within the UV, VIS, NIR and IR spectral range (from 180-540nm and from 730-25000nm). It is certified with M protection levels and is therefore suitable for picosecond and femtosecond lasers. It was designed for use on powerful, frequency-multiplied Nd:YAG, disk, fiber and diode lasers as well for SHG, FHG, THG, CO2 und USP-Lasers. The goggles with orange, reflective and absorbent filters can be worn over average sized prescription glasses. The exchangeable clip frame with lip seal lends this OTG goggles a unique and good wearing comfort. The laser safety goggle comes with a metal box, which can also be used as a storage box.
- Order number: R14T1P071003
- GTIN: 4050369059306
- Pack unit: 1 pieces
- Weight incl. packaging: 0,64 kg
- Weight excl. packaging: 0,29 kg
Product number:
R14T1P071003
Product information "laser safety spectacle R14T1P07L"
Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
Infrared
Protection in the infrared spectral range above 1400nm
cc-uvex.protectionrange.properties.coatedfilter.title
cc-uvex.protectionrange.properties.coatedfilter.description
| Coating: | Interference Coating (PVD) |
|---|---|
| Cushion: | Lip seal (L) |

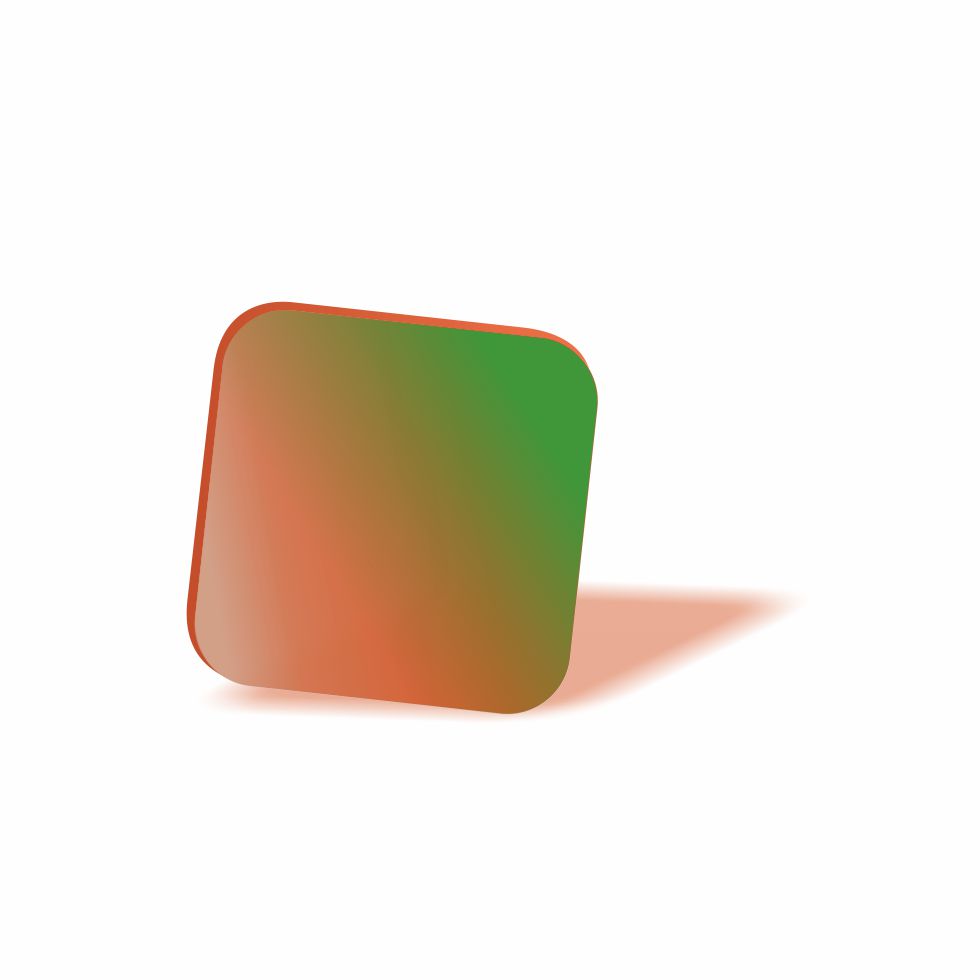

| Filter: | T1P07 |
| Filter colour: | Orange |
| Filter material: | Coated glass |
| Filter technology: | Absorption filter, Reflection filter |
| Filter thickness: | ca. 8-9mm |
| Frame: | R14 |
| Frame type: | Goggle with strap |
| Properties: | M-protection rating |
| Protection Class / Norm: | EN 207 full protection |
| Protection range: | Coated filter, Infrared, near infrared, ultraviolett, visible |
| VLT (approx.): | 15% |
| Visual brightness: | Limited |

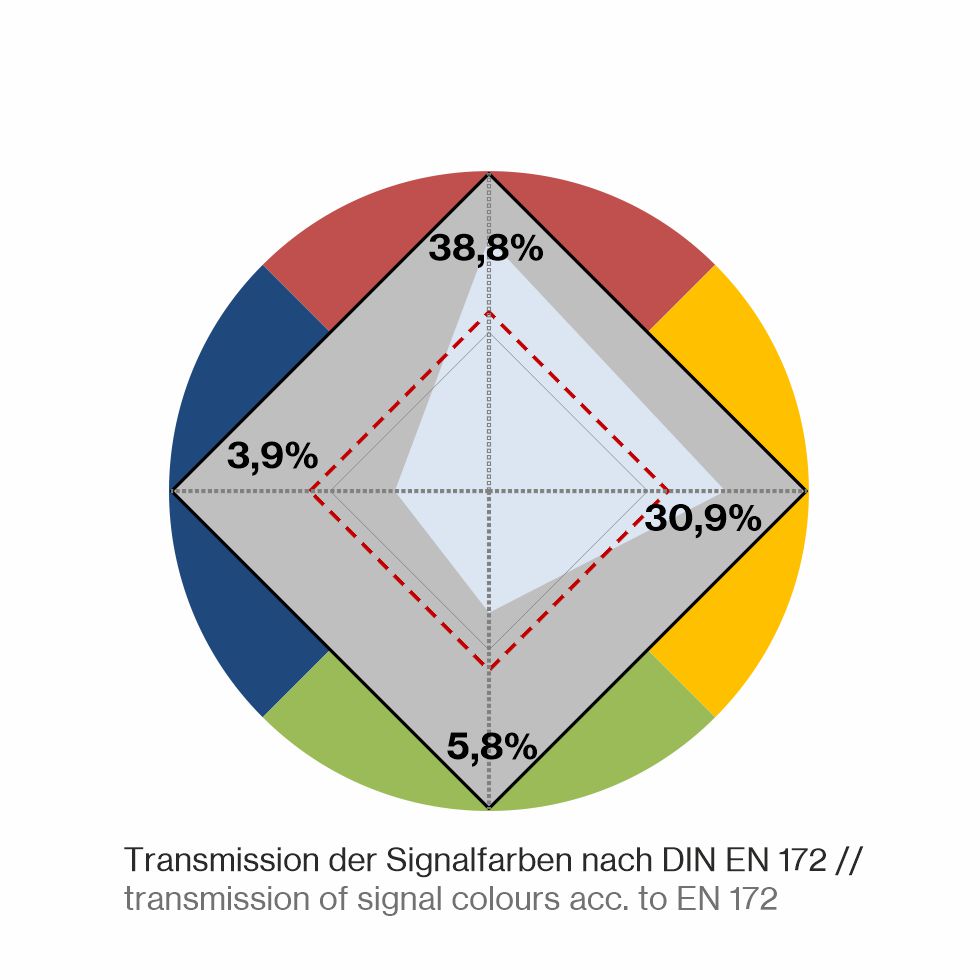

| colour recognition: | Limited |

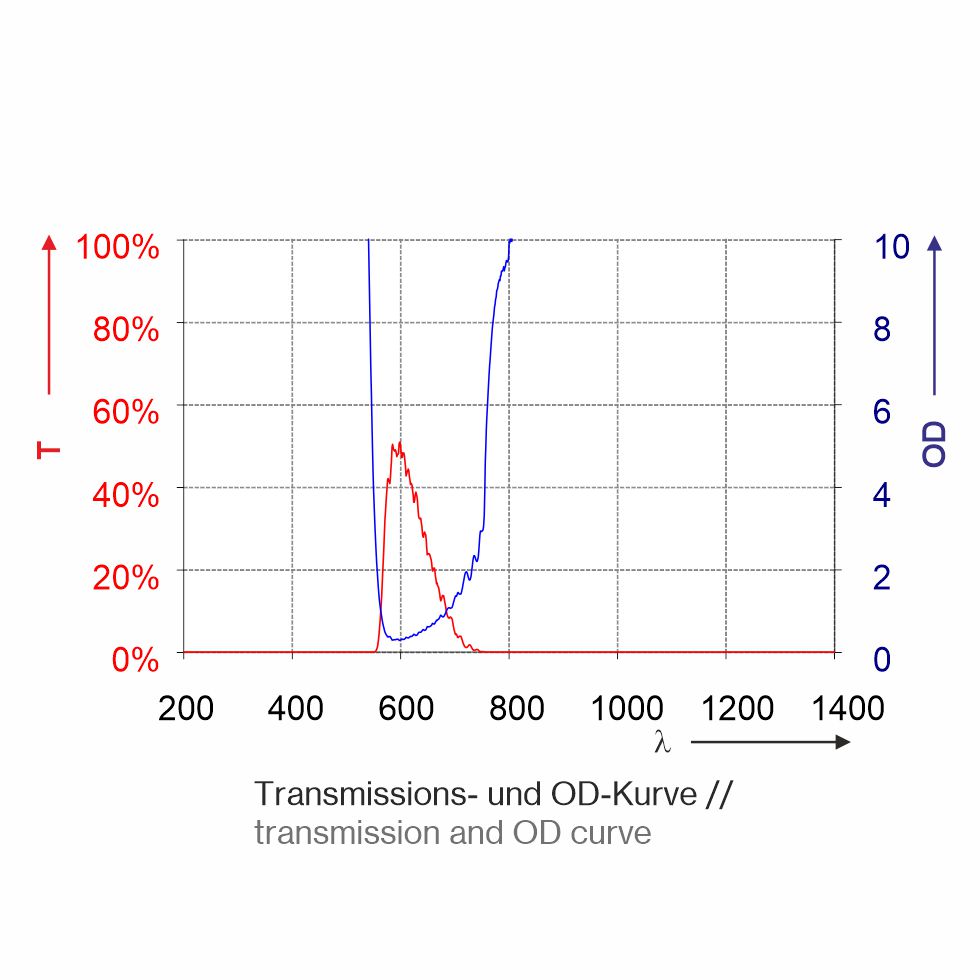

| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 180 - 315 | (OD10+) | D LB10 + IR LB4 + M LB6Y |
| >315 - <532 | (OD10+) | D LB7 + IR LB8 + M LB9 |
| 532 - 540 | (OD10+) | D LB8 + IR LB9 + M LB10 |
| 730 - <760 | (OD1+) | DIRM LB1 |
| 760 - <780 | (OD2+) | DIRM LB2 |
| 780 - <808 | (OD7+) | DIRM LB7 |
| 808 - 860 | (OD8+) | DIRM LB8 |
| >860 - 1025 | (OD8+) | D LB7 + IRM LB8 |
| >1025 - 1100 | (OD10+) | D LB8 + IR LB9 + M LB10 |
| >1100 - 1400 | (OD10+) | D LB7 + IR LB8 + M LB9 |
| >1400 - 3500 | (OD5+) | DM LB5 + I LB5Y + R LB4 |
| >3500 - 25000 | (OD10+) | D LB5 + I LB5Y + R LB3Y + M LB6Y |
Accessories
Cushion frame with lip seal
The cushion frame with sealing lip (A14LIPSE1000) for the laser safety spectacle frame R14 is particularly easy to clean. Buy from laservision!
Particle Pre-Filters for Swiss Air Respirator
Set of 50 pre-filters for the Swiss Air PAPR (powered air-purifying respirator) system. Buy from laservision!
Swiss Air PAPR
Swiss Air PAPR complete respiratory protection system incl. control panel, mask and filter. Buy from laservision!
Cushion frame with foam
The soft foam - cushion frame for the laser safety spectacle frame R14 (A14FORUB1000) for particularly high wearing comfort. Buy from laservision!
Chest protector made of leather (long)
Chest protector made of leather (long) compatible with Panoramaxx and FS1. Buy from laservision!
Head strap with logo for R14
Elastic headband A14STRAP1LV0 for the R14 frame, adjustable, with clip closure and side attachment. Buy from laservision!
Cleaning station model 1300 with accessoires
The professional cleaning station A99CLSTA1300 for wall mounting finds a place in every room. Buy from laservision!
Cushion frame with vented foam
The ventilated soft foam - cushion frame for the R14 (A14AIRED1000) for high wearing comfort and clear vision. Buy from laservision!
Head support system for frame R14
For the laser safety goggles R14, the carrying basket offers a significantly higher wearing comfort for thick and heavy glass filters. Buy from laservision!
Anti fog - R14 insert
Special plastic lens to prevent fogging in extreme humidity or high temperature for R14 socket. Buy from laservision!
Mouth-nose Mask for Swiss Air PAPR
Replacement black mouth-nose mask for the Swiss Air Respirator. Buy from laservision!
Particle Filter for Swiss Air Respirator
Filter replacement for the Swiss Air PAPR system. Includes pre-filter. Buy from laservision!
Other products in this category

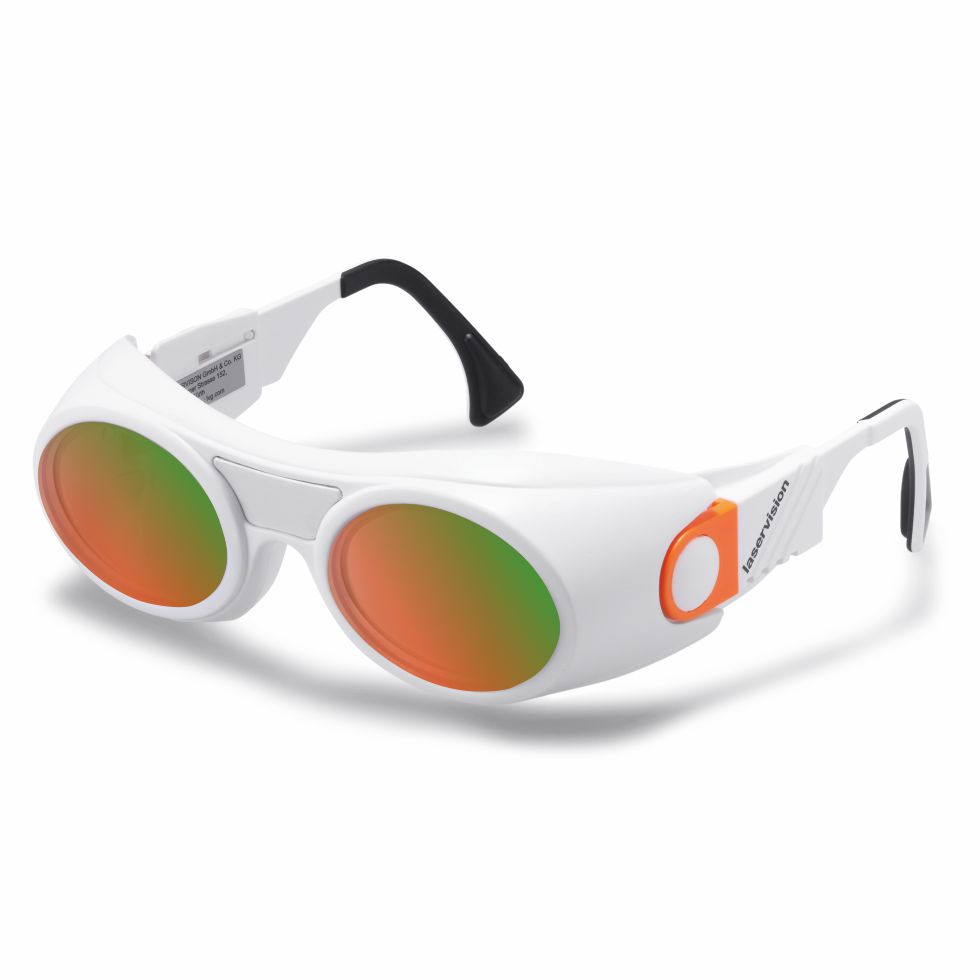

laser safety spectacle R01T1P07
