laser safety spectacle R14T1L01A
The laservision laser safety goggle R14.T1L01.1004 with an aired foam frame (A), provides very high I- and R-laser safety effects within the UV, VIS and NIR spectral area (180-532nm and 1,030-1,100nm). The OTG goggle with coated, orange filters can be worn over average large correction glasses. The changeable click frame with an aired foam (A14AIRED1000) makes the goggles particularly comfortable to wear and prevents fogging of the laser protection filters. A clear view is guaranteed even with a long wearing period. The shipment includes a metal box which can also be used as a storage box. The removable frame can optionally be bought in sets of 5.
- Order number: R14T1L011004
- GTIN: 4050369019454
- Pack unit: 1 pieces
- Weight incl. packaging: 0,66 kg
- Weight excl. packaging: 0,22 kg
Product number:
R14T1L011004
Product information "laser safety spectacle R14T1L01A"
Protection range
ultraviolett
Protection within the ultraviolet spectral range between 180 and 400nm
visible
Protection within the visible spectral range between 400 and 700nm
near infrared
Protection within the near infrared spectral range between 700nm and 1400nm
cc-uvex.protectionrange.properties.coatedfilter.title
cc-uvex.protectionrange.properties.coatedfilter.description
| Coating: | Interference Coating (PVD) |
|---|---|
| Cushion: | Aired foam (A) |
| Filter: | T1L01 |
| Filter colour: | Orange |
| Filter curvature: | Flat filter |
| Filter material: | Coated glass |
| Filter technology: | Absorption filter, Reflection filter |
| Filter thickness: | ca. 7mm |
| Frame: | R14 |
| Frame type: | Goggle with strap |
| Properties: | M-protection rating, Neutral glass lamination |
| Protection Class / Norm: | EN 207 full protection |
| Protection range: | Coated filter, near infrared, ultraviolett, visible |
| VLT (approx.): | 30% |
| Visual brightness: | Good |
| colour recognition: | Slightly limited |
| WAVELENGTH (NM) | OD | OPERATING MODE / TESTED PROTECTION LEVEL |
|---|---|---|
| 180 - 315 | (OD10+) | D LB10 + IR LB5 + M LB6Y |
| >315 - 535 | (OD9+) | DI LB7 + R LB8 + M LB9 |
| 1030 - 1100 | (OD9+) | D LB7 + IRM LB9 |
| 2000 - 2200 | (OD2+) | DI LB2 + R LB1 |
| 5400 - 5400 | (OD4+) | D LB3 + I LB4 + R LB2 |
| 9000 - 25000 | (OD4+) | D LB3 + I LB4 + R LB2 |
Accessories
Chest protector made of leather (long)
Chest protector made of leather (long) compatible with Panoramaxx and FS1. Buy from laservision!
Mouth-nose Mask for Swiss Air PAPR
Replacement black mouth-nose mask for the Swiss Air Respirator. Buy from laservision!
Particle Filter for Swiss Air Respirator
Filter replacement for the Swiss Air PAPR system. Includes pre-filter. Buy from laservision!
Anti fog - R14 insert
Special plastic lens to prevent fogging in extreme humidity or high temperature for R14 socket. Buy from laservision!
Cleaning station model 1300 with accessoires
The professional cleaning station A99CLSTA1300 for wall mounting finds a place in every room. Buy from laservision!
Head strap with logo for R14
Elastic headband A14STRAP1LV0 for the R14 frame, adjustable, with clip closure and side attachment. Buy from laservision!
Cushion frame with vented foam
The ventilated soft foam - cushion frame for the R14 (A14AIRED1000) for high wearing comfort and clear vision. Buy from laservision!
Cushion frame with lip seal
The cushion frame with sealing lip (A14LIPSE1000) for the laser safety spectacle frame R14 is particularly easy to clean. Buy from laservision!

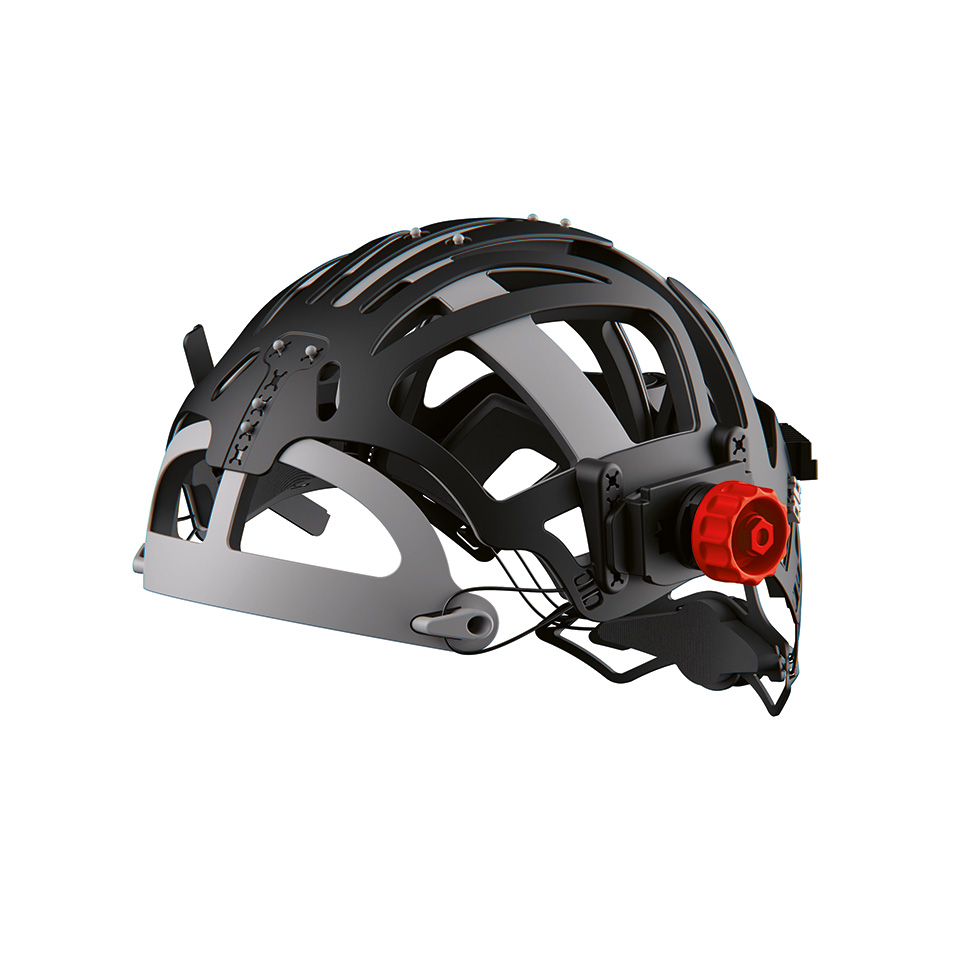

Head support system for frame R14
